DIHOOL 6A 2-Pole Solar Disconnect Switch – Non-Polarized AC/DC Circuit Breaker

A DIN-rail mounted DC/AC circuit breaker for solar and battery systems, built to protect against overload and short-circuit damage while doubling as a manual disconnect for circuit isolation.

Functions: Protects 48–400VDC or 90–400VAC circuits from overload and short-circuit damage, and 12–48VDC circuits from overload damage. Can also be used for control and circuit isolation.

Key Specs:

• Dimensions: 54mm x 80mm x 75mm
• Mounting: Standard 35mm DIN rail
• Includes: 1x DIN rail, 2x mounting screws, 4x copper crimp terminals
• Construction: Built-in arc-squelching magnet, flame-retardant enclosure, silver alloy contacts, pure copper coils
• Trip Protection: Electromagnetic trip system for fast response to short circuits
• Polarity: Non-polarized — can be wired in either direction

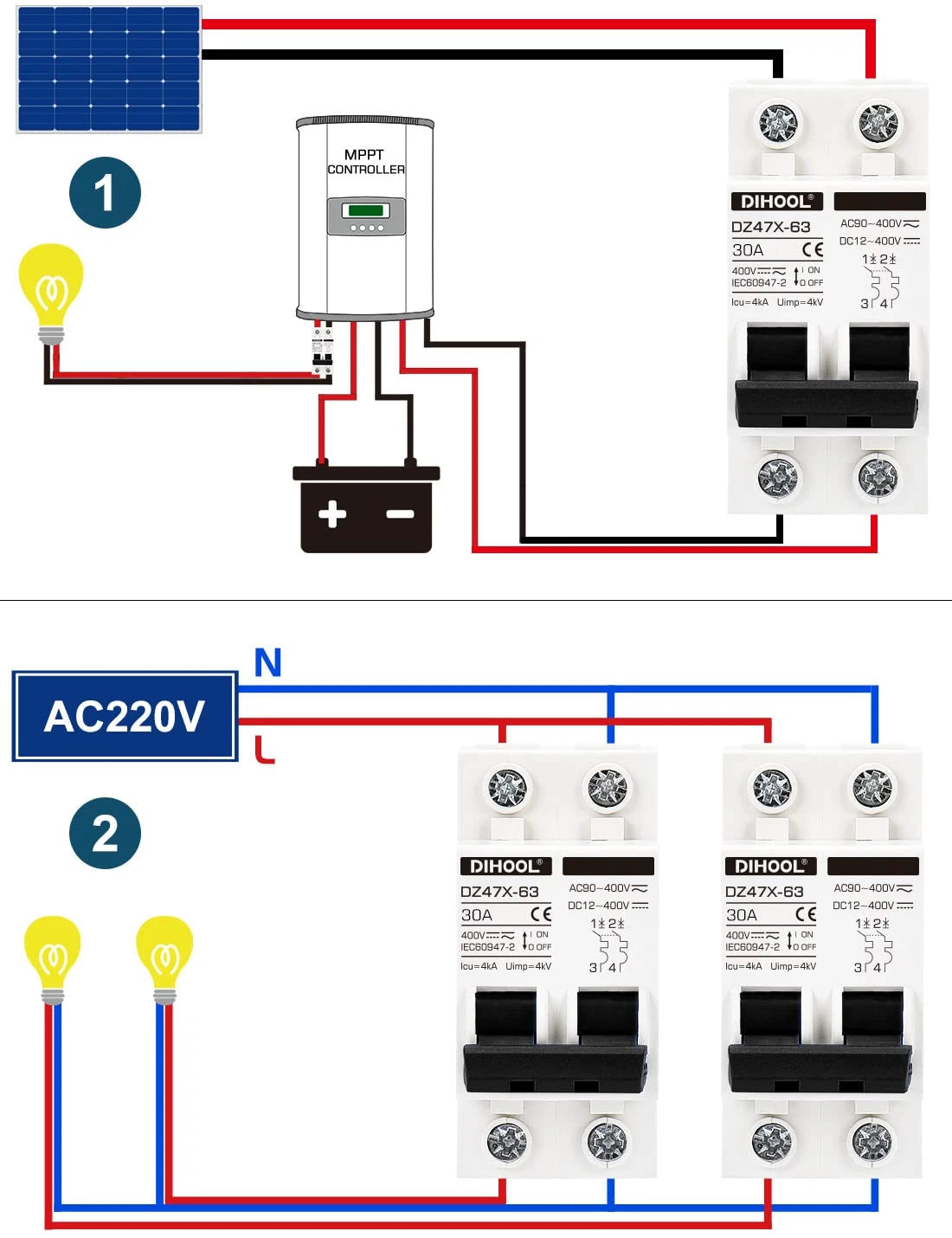

Ideal for PV arrays, solar charge controllers, battery systems, power inverters, DC motor protection, and general AC systems (50/60Hz) in RVs and homes. The non-polarized design also makes it well suited to reversible-current applications like battery charge/discharge circuits and EV charging systems.
