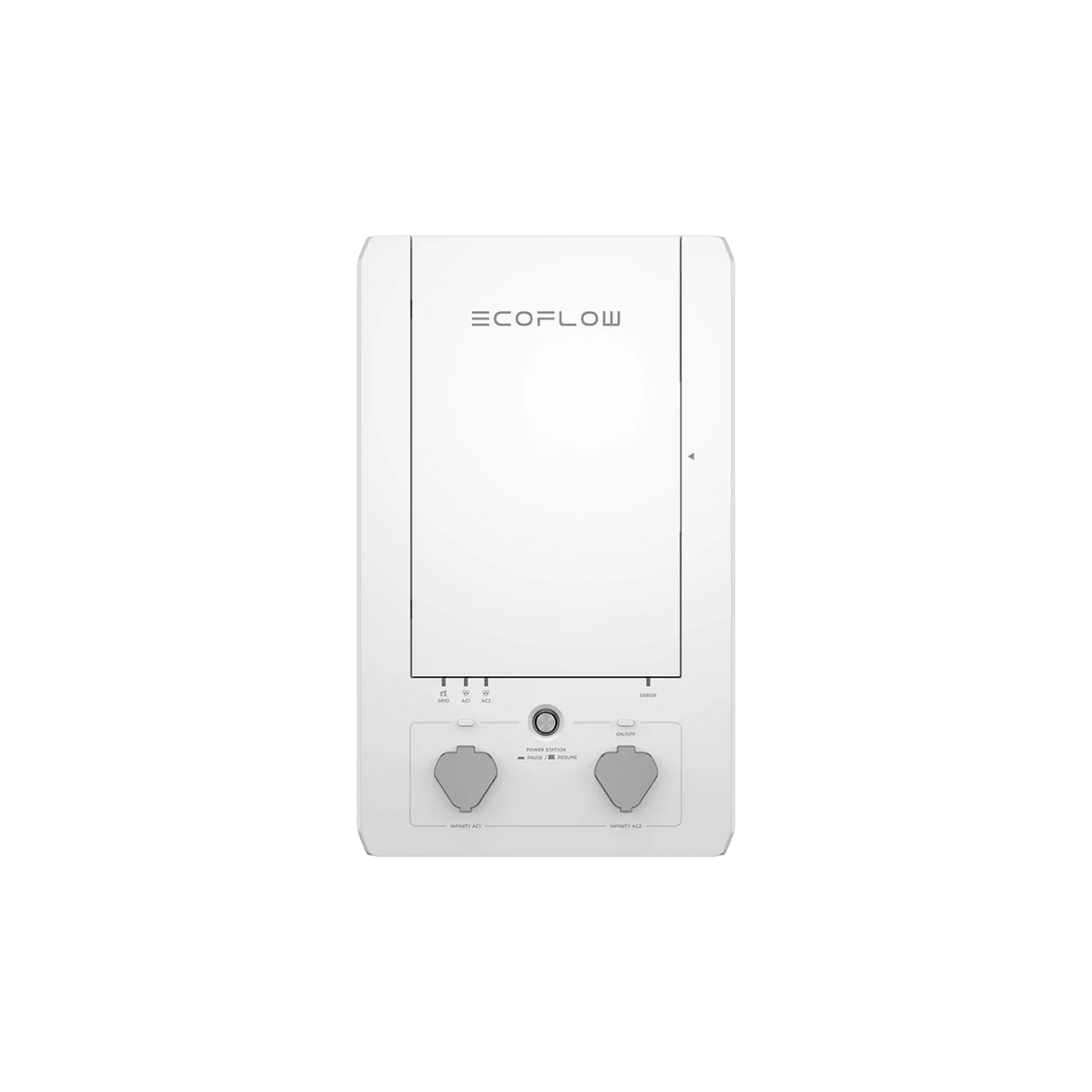

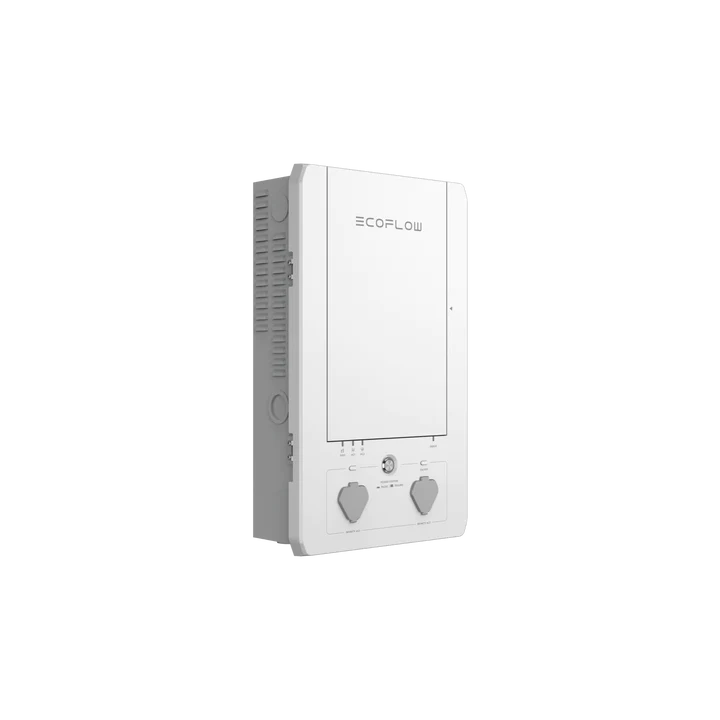

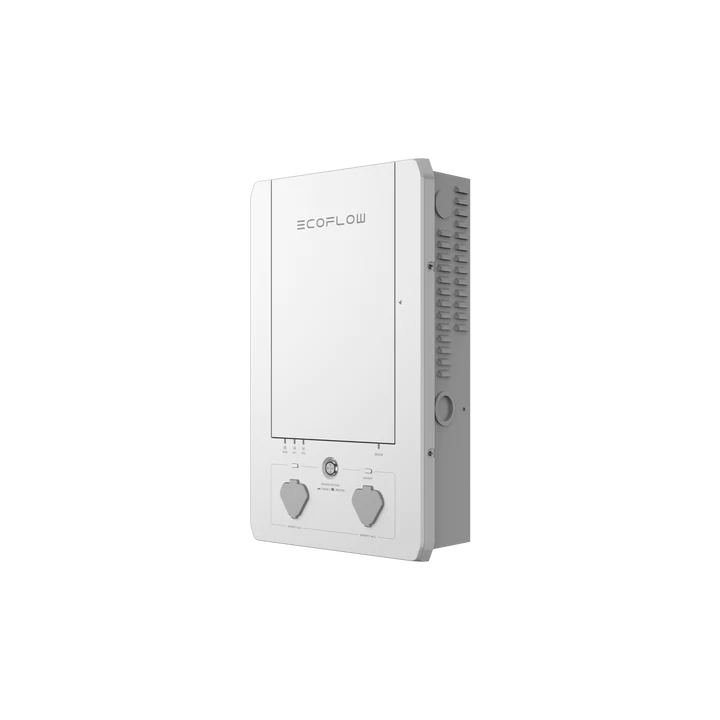

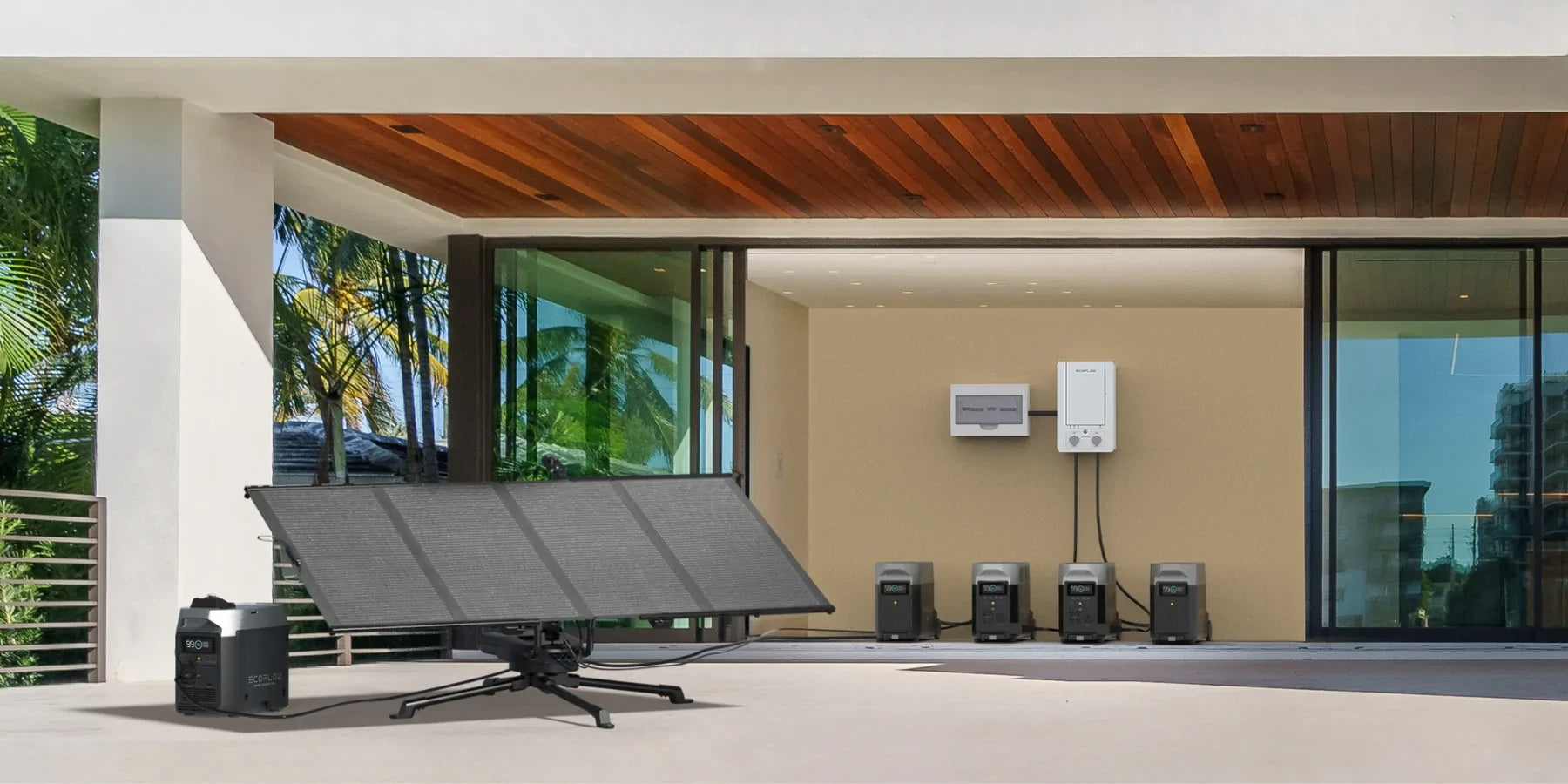

EcoFlow Smart Home Panel Combo (13 Relay Modules)

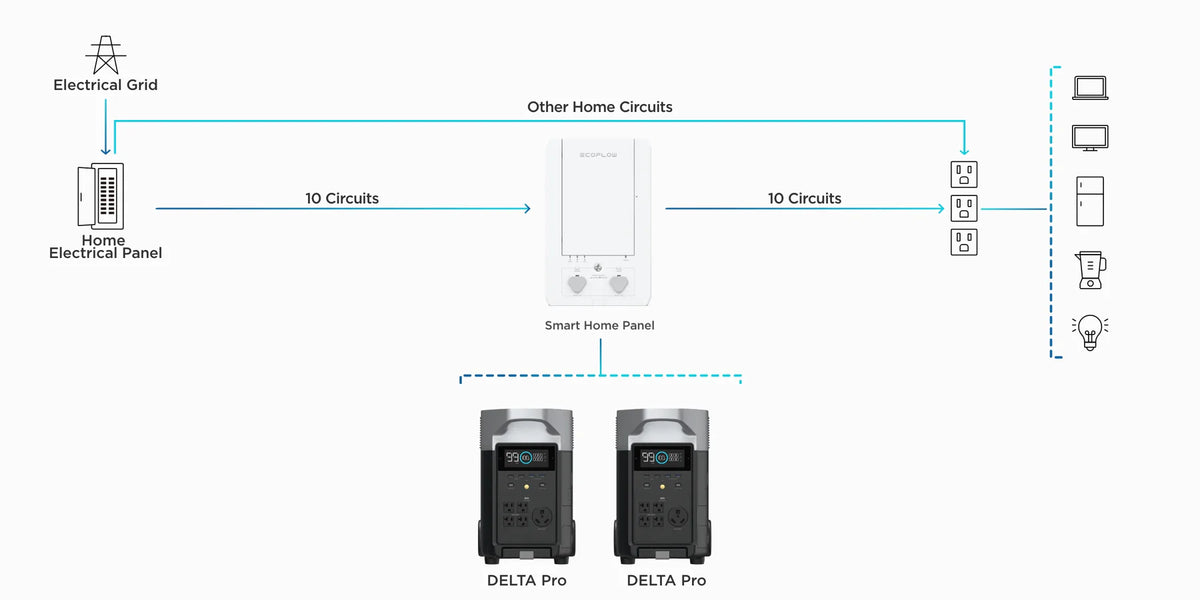

The EcoFlow Smart Home Panel integrates the DELTA Pro directly with your home's wiring, giving you a flexible, expandable home battery backup solution. Link up to 10 home circuits for uninterrupted power during blackouts and smart energy management.

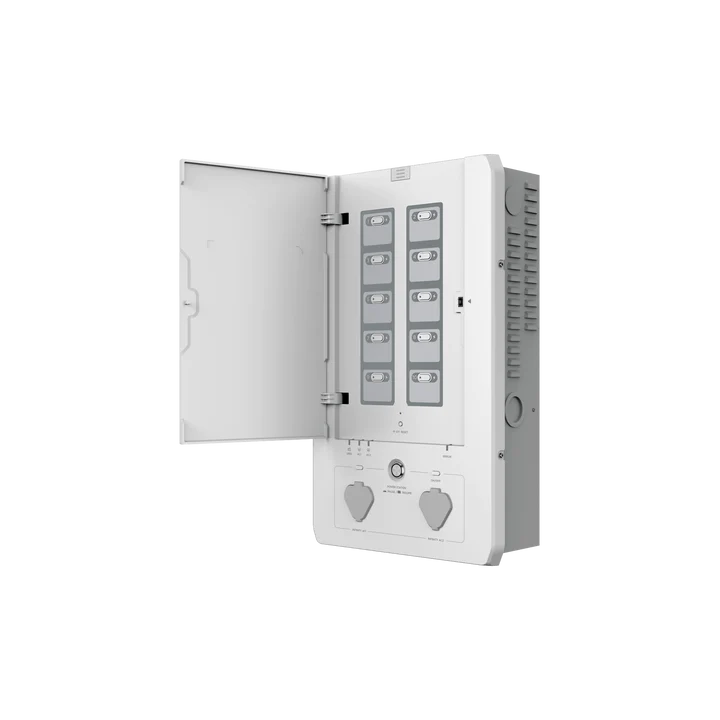

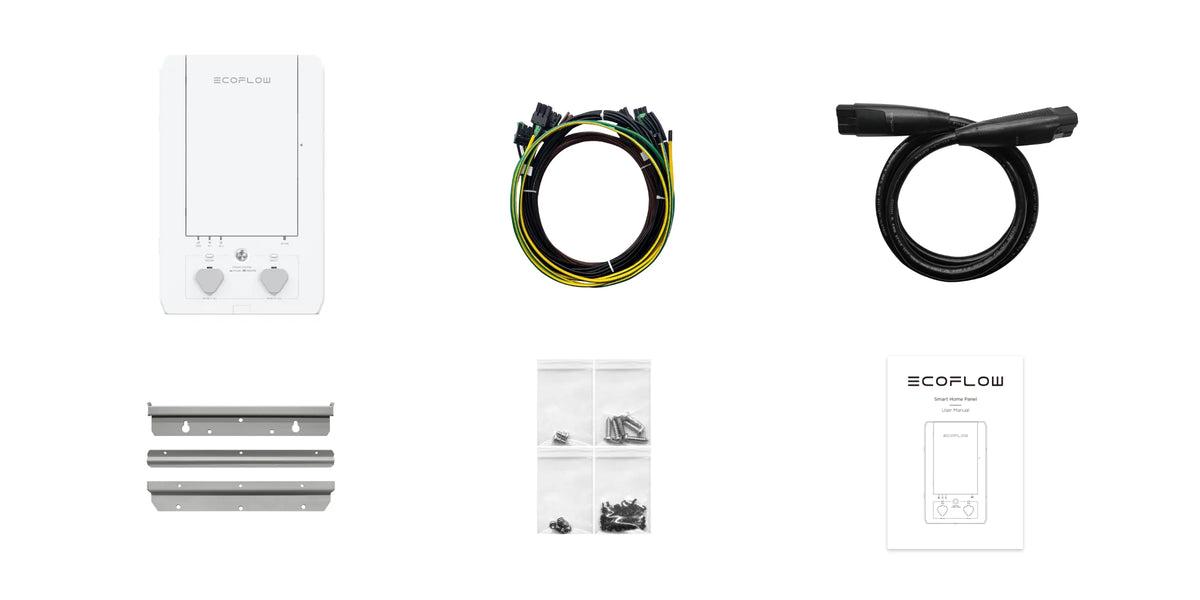

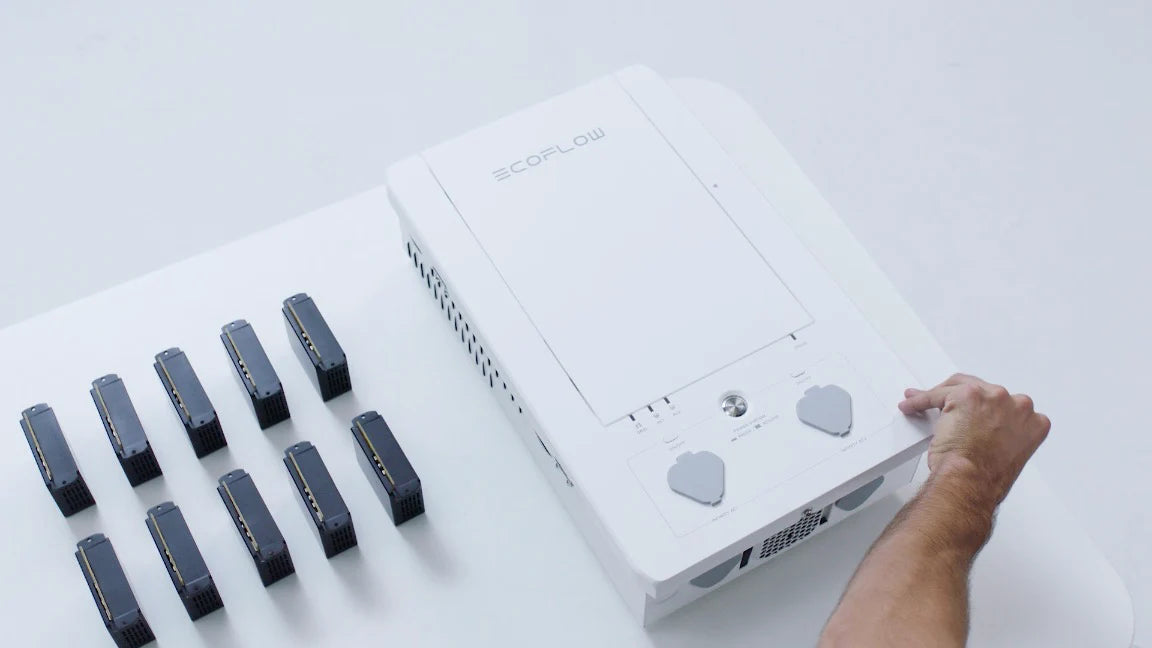

This listing includes the Smart Home Panel plus a full relay combo: 1x Smart Home Panel, 5x 15A Relay Module, 5x 20A Relay Module, and 3x 30A Relay Module.

Backup Power: When the grid goes down, the Smart Home Panel instantly switches to battery backup using any connected DELTA Pro units — up to 7,200W of power and 25kWh of energy when properly equipped.

App Control: Monitor and control each connected circuit from the EcoFlow app, with real-time consumption metrics and options to optimize for home backup, cost savings, or a custom schedule — including which power source your house draws from.

Peak Rate Avoidance: On time-of-use billing, charge your DELTA Pro(s) during low-rate hours and draw from them during peak hours to lower your bill and ease pressure on the grid.

Key Specs:

• Output Voltage: 120V / 240V
• System Frequency: 60Hz
• Controlled Circuits: 10
• Rated Current: 30A, 20A, 15A
• Max Backup Power: 3,600W / 7,200W
• Max Connected Battery Energy: 21.6kWh
• Charging Input (from DELTA Pro): 3,400W max
• IP Rating: IP20

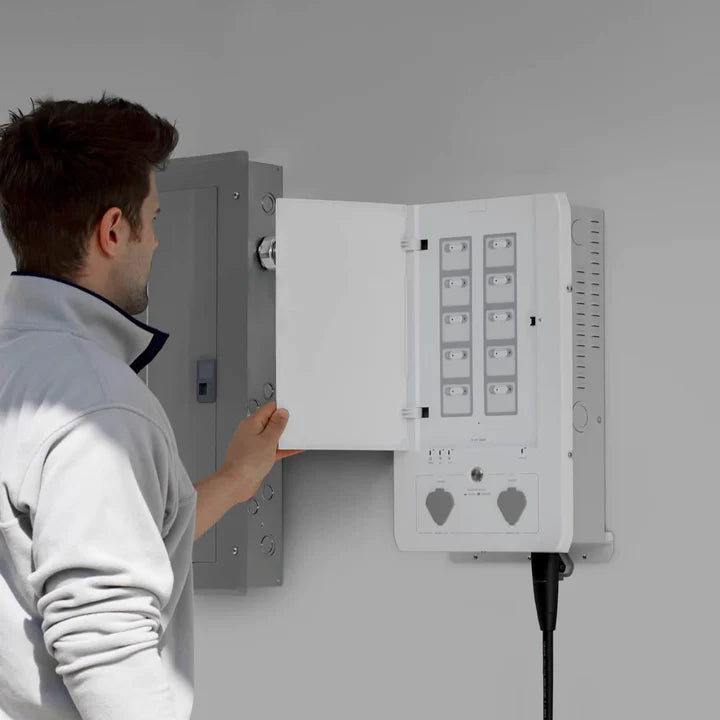

• Installation: Wall mount, by a licensed electrician
• Warranty: 3 years
• Dimensions: 18.1 x 11.8 x 4.7 in. (460 x 330 x 120 mm)
• Weight: 20 lb (9 kg)
