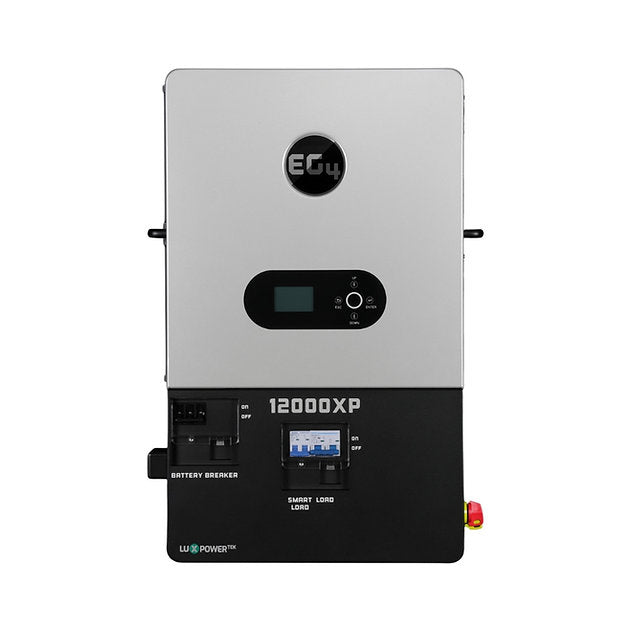

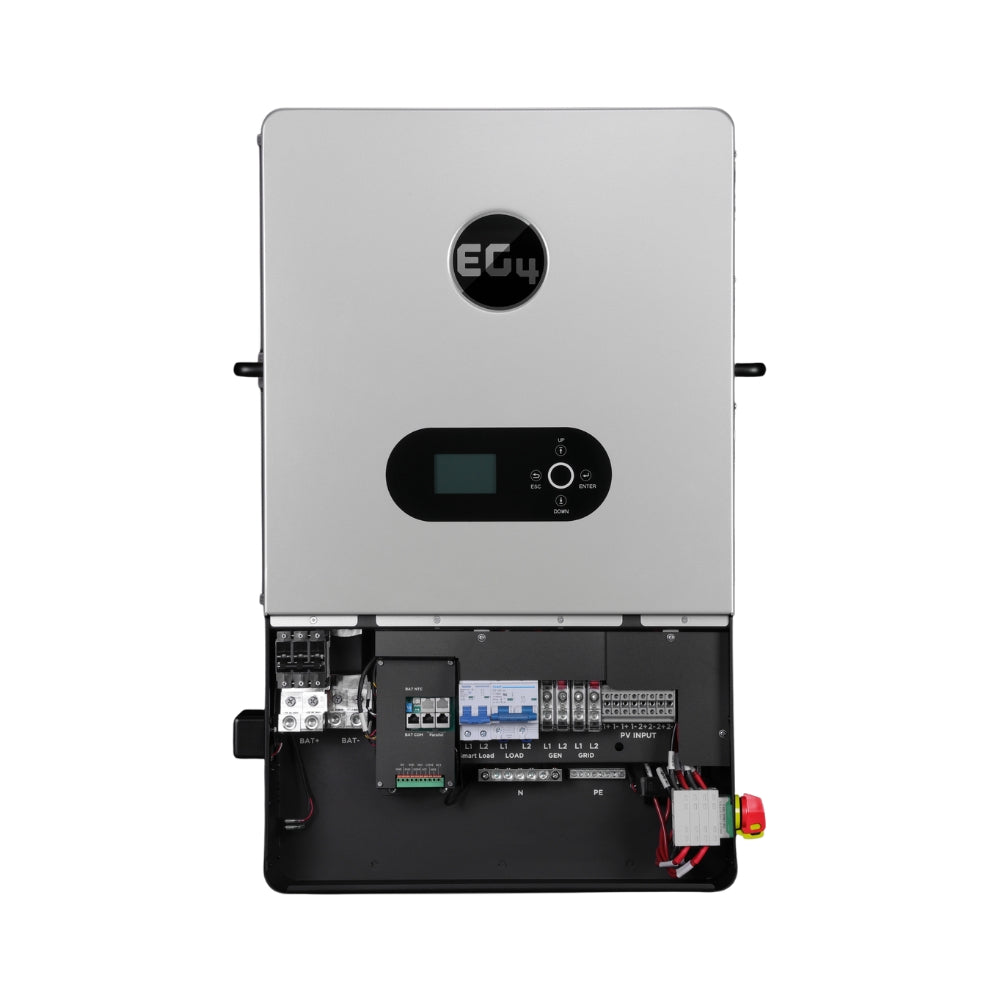

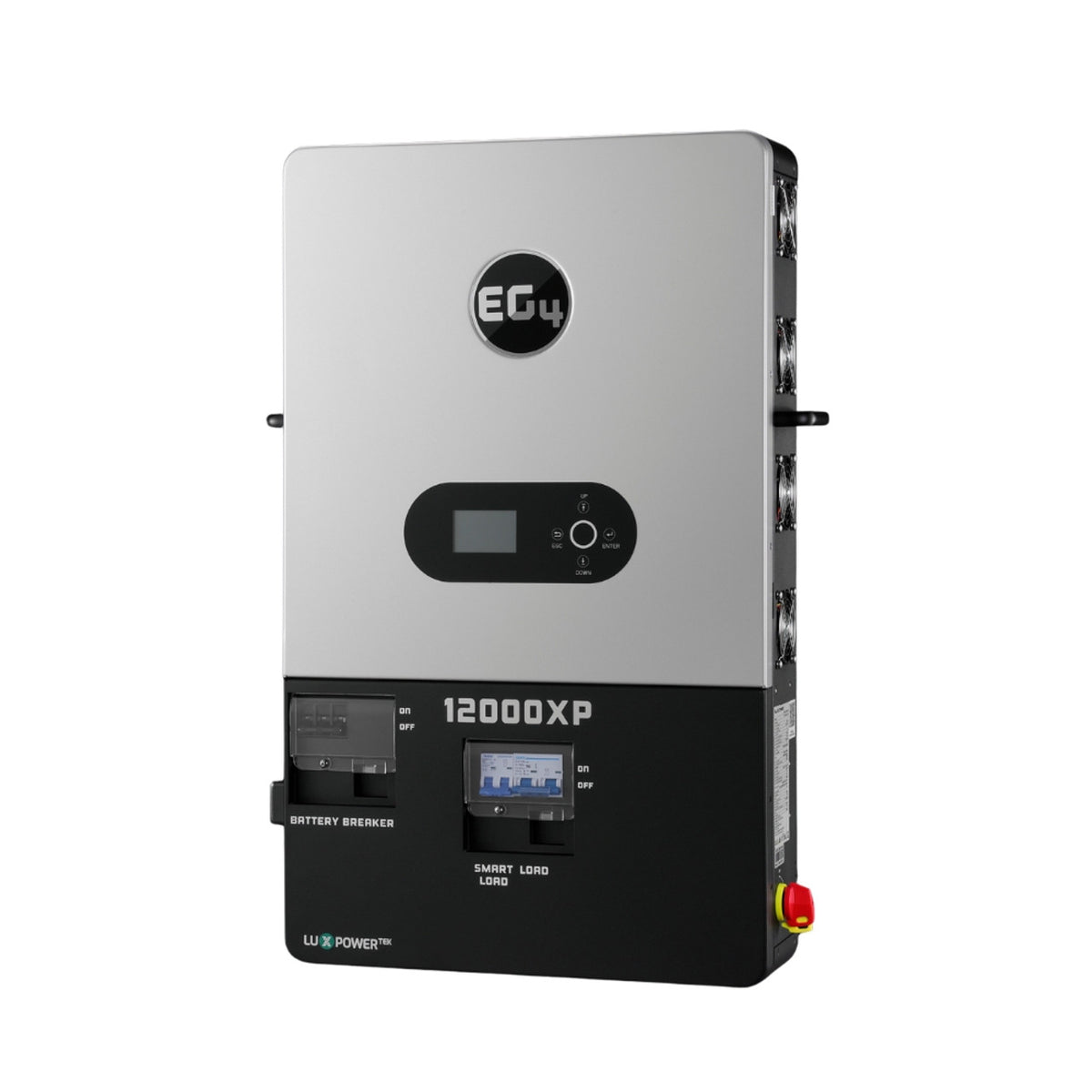

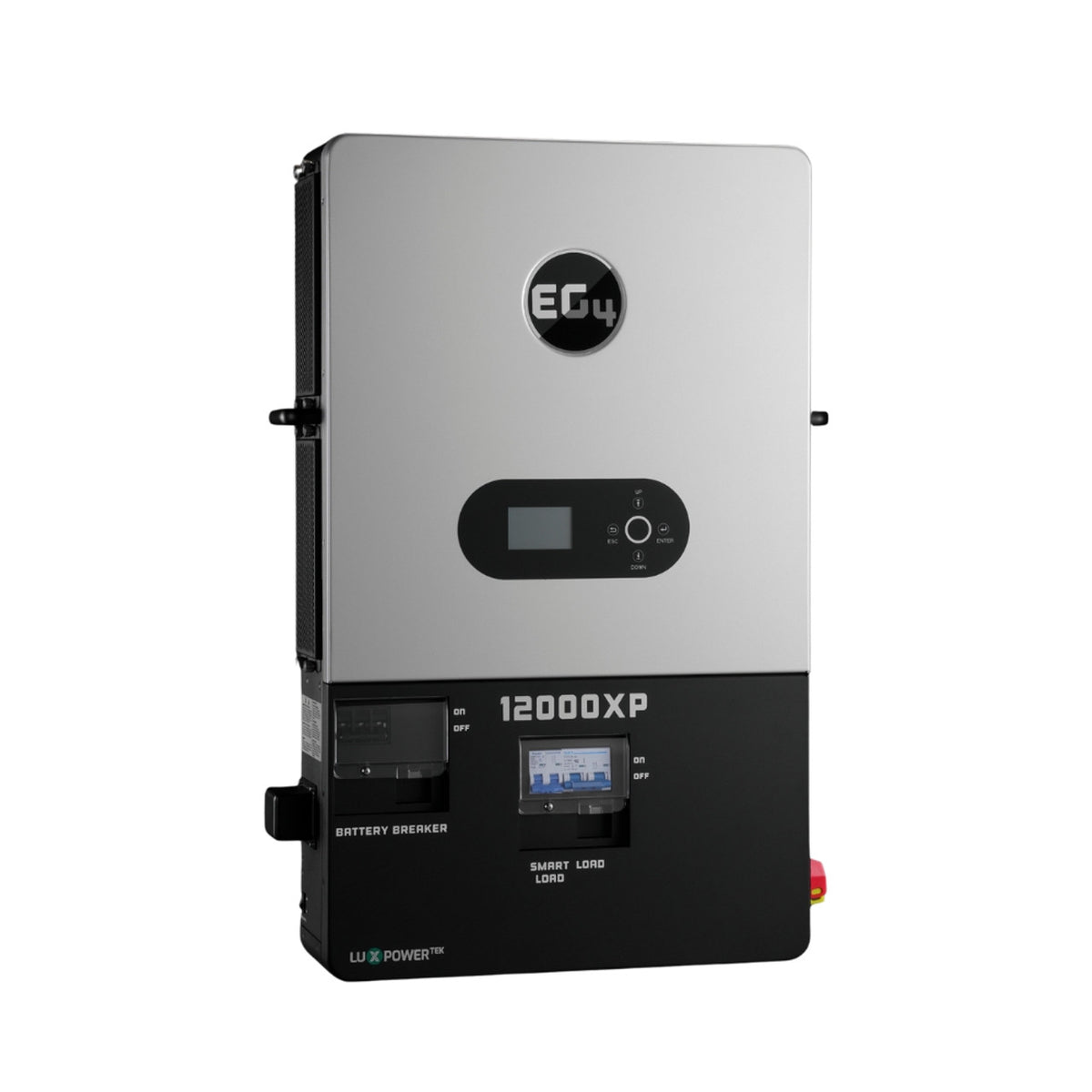

EG4 12000XP Off-Grid Inverter | 48V Split Phase | 24kW PV Input | 12kW Power Output

The EG4 12000XP is an all-in-one, 48V split-phase off-grid inverter built for serious off-grid and backup power systems. It accepts up to 24kW of solar input across two independent MPPT charge controllers while delivering a full 12kW of continuous 120/240VAC output — enough to run demanding whole-home loads without leaning on the grid. A generous 18kW peak rating handles motor start-up and other surge loads with room to spare.

Key Specs:

• Continuous AC Output: 12kW @ 120/240VAC
• Peak Power: 18kW for 5 seconds
• PV Input: up to 24kW, two MPPTs with two inputs each (four inputs total)
• MPPT Operating Voltage Range: 120-385V
• Max Usable Input Current: 35A per MPPT
• Max Short Circuit Current: 44A per MPPT
• Max Battery Charge/Discharge Rate: 250A
• Grid Bypass: 100A
• Dimensions: 34.25 x 20.87 x 5.91 in.
• Weight: 104.7 lbs

Built for 48V battery banks, the 12000XP pairs well with EG4's lithium battery lineup for a complete off-grid power system.
