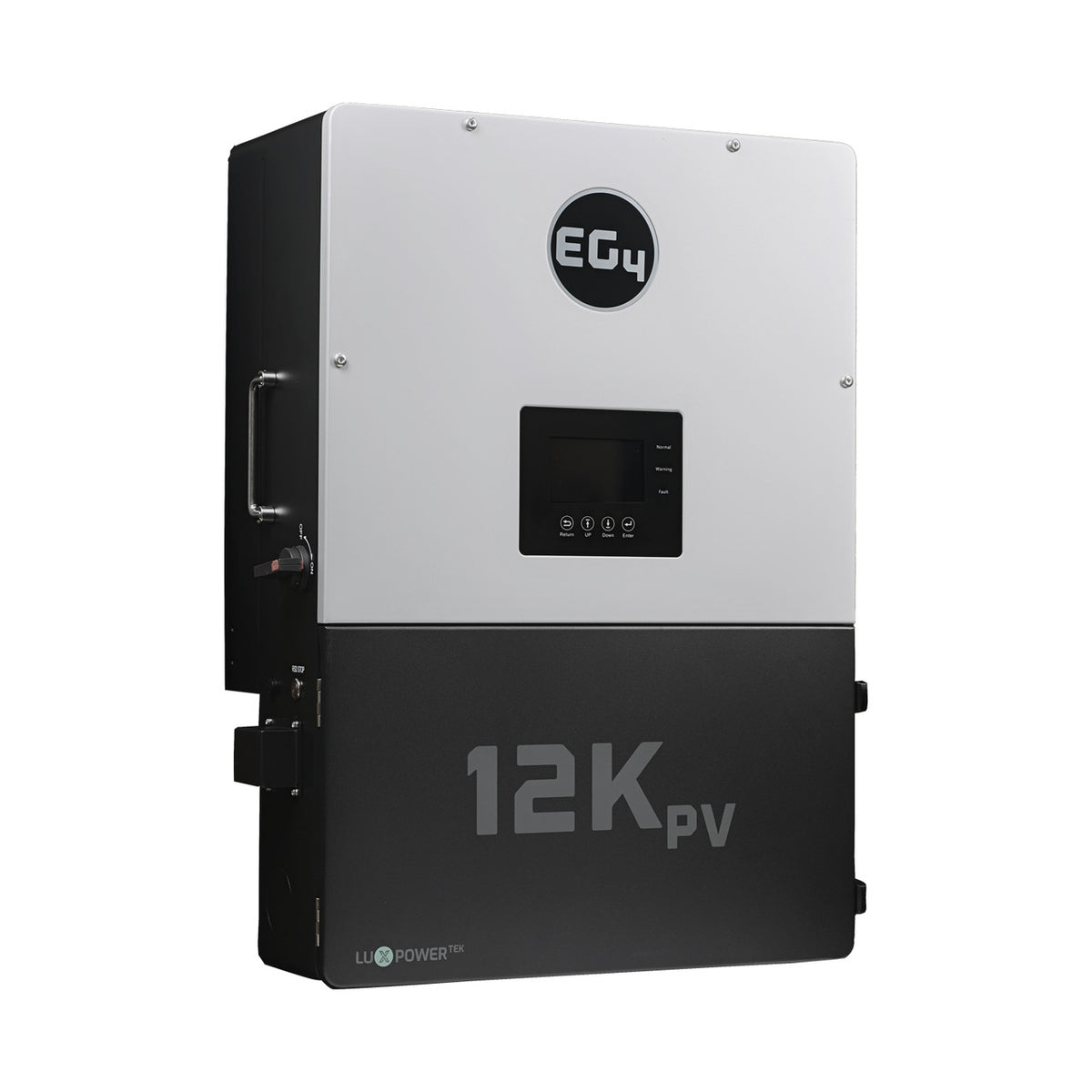

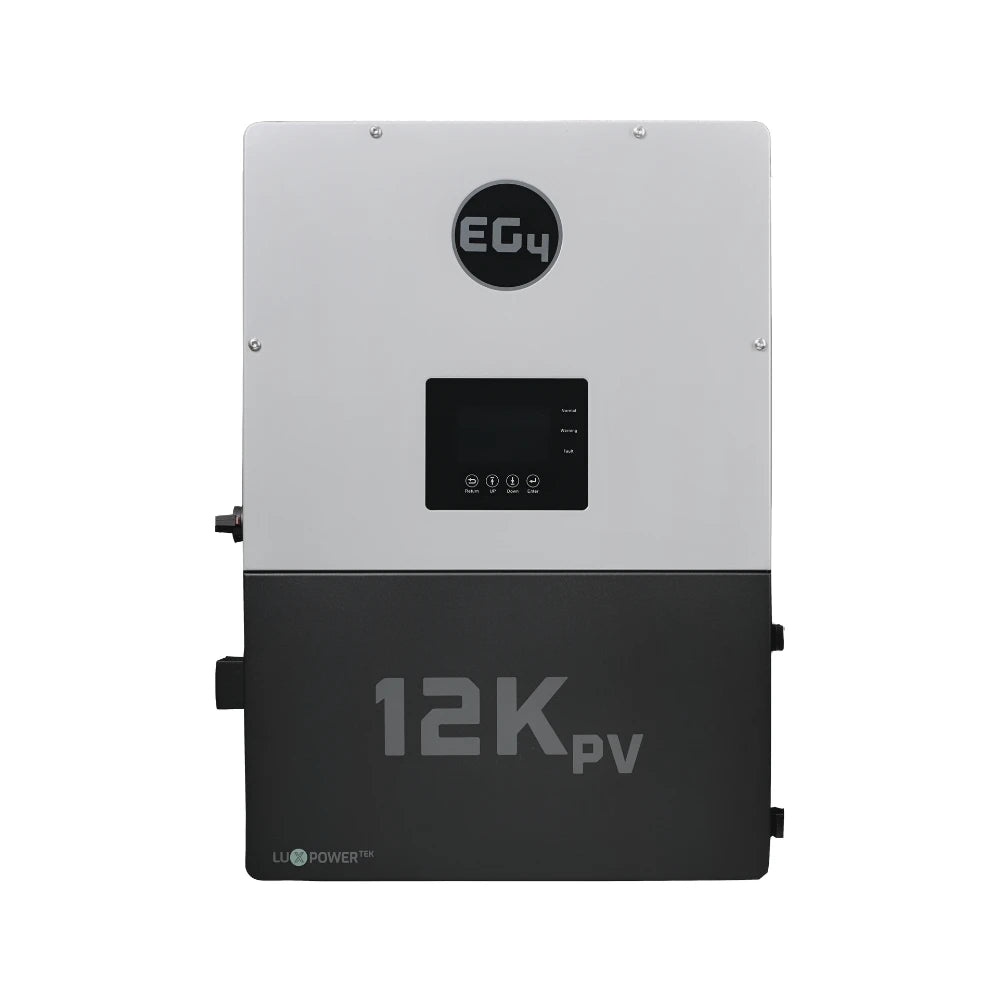

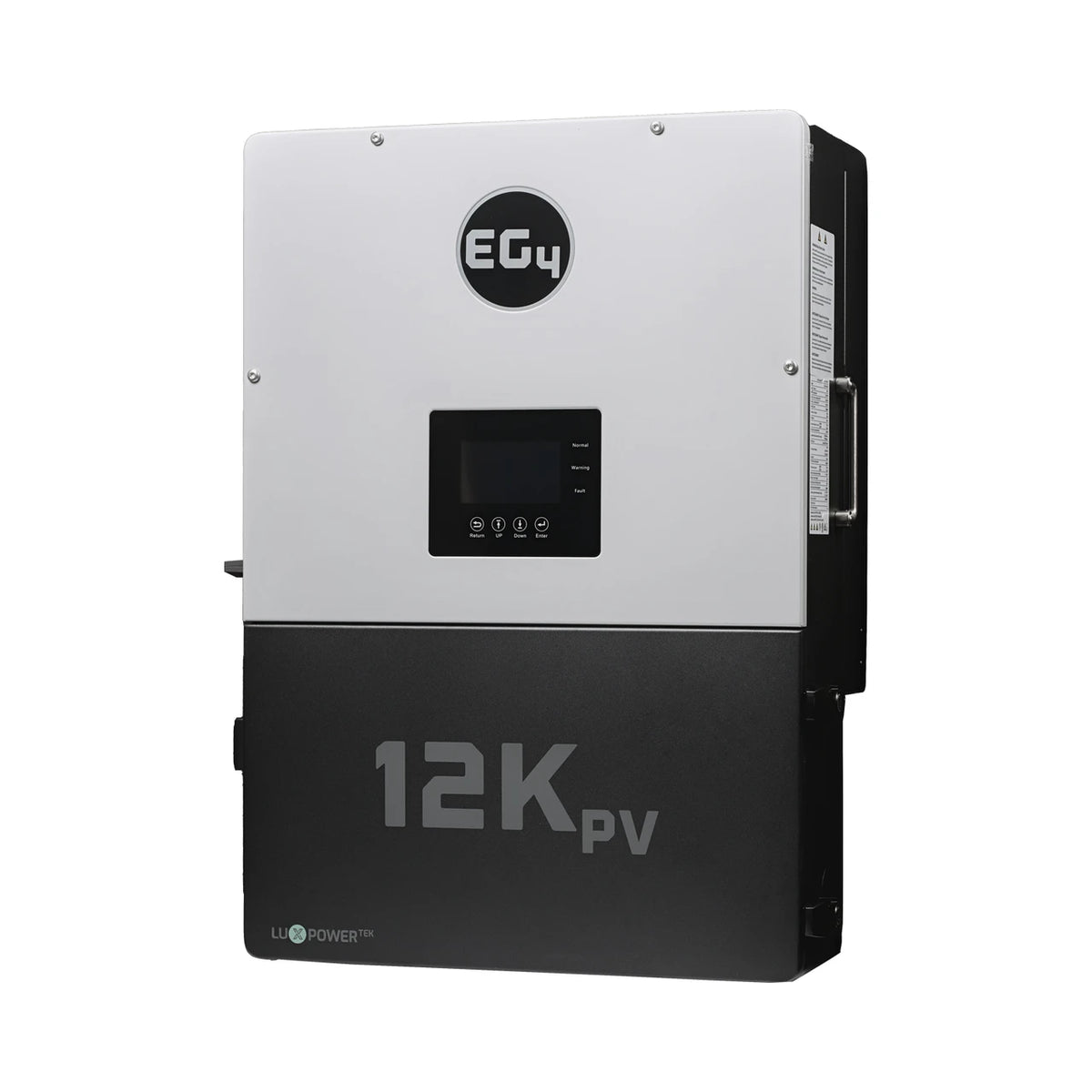

EG4 12kPV Hybrid Inverter — 48V Split-Phase All-in-One

The EG4 12kPV is a 48V, split-phase hybrid inverter/charger built for rural and suburban energy independence. It delivers 8,000W continuous output while accepting up to 12kW of usable PV input (15kW max array), and shares its architecture and firmware with the EG4 18kPV. Run fully off-grid, grid-tied with battery backup, or sell power back — and parallel up to 10 units for 80kW of combined output.

Key Features

• 8,000W Continuous Output, scalable to 80kW by paralleling up to 10 units
• Dual MPPTs rated to 12kW (15kW max array), 100–600VDC input range, 120–500VDC MPPT operating range
• Hybrid split-phase design — off-grid, grid-tied with backup, and generator input support
• 10ms transfer time (selectable) with built-in Rapid Shutdown (NEC 690.12 / CSA C22.2#330)
• 167A max charge/discharge current at 48VDC nominal, compatible with lead-acid and lithium batteries (40–60VDC range)
• NEMA 4X enclosure rated for indoor or outdoor installation
• Remote monitoring via the EG4 app/monitoring platform over Wi-Fi, RS485, or CAN
• 97.5% max efficiency (PV to grid), 96.4% CEC weighted efficiency
• 10-year standard warranty

Specifications

• Model: IV-8000-HYB-AW
• Nominal AC Voltage: 120/240VAC or 120/208VAC (L1/L2/N)
• Max Output Current: 33.3A @ 240VAC / 38.5A @ 208VAC
• Peak Power: 16kW (0.5s) / 12kW (1s) / 10kW (1min) / 8.8kW (12min)
• Number of MPPTs: 2 (2 inputs per MPPT), 25A per MPPT / 41.6A total
• Nominal MPPT Voltage: 360VDC
• Idle Consumption: <55W
• Dimensions (H×W×D): 29.5 × 20.5 × 11.2 in (750 × 520 × 285 mm)
• Weight: 110 lbs (50 kg)
• Operating Temp: -13°F to 140°F (-25°C to 60°C)
• Noise: <50 dB @ 3 ft
• Certifications: UL1741 SA/SB/PCS CRD, IEEE 1547.1:2020, CSA 22.2.107.1/330, NEC 690.12 (RSD), NEC 690.11/UL1699B (AFCI), NEC 690.41(B) (GFDI), California Rule 21, Hawaii Rule 14H, FCC Part 15 Class B

Manufacturer Spec Sheet (PDF) | User Manual (PDF)

Ships direct — additional balance-of-system components (breakers, disconnects, wiring) may be required for a complete install.
