EG4 Hybrid Solar Mini-Split Air Conditioner/Heat Pump AC/DC 12,000 BTU SEER2 21.5
EG4 Hybrid Solar Mini-Split Air Conditioner/Heat Pump AC/DC 12,000 BTU SEER2 21.5
Couldn't load pickup availability

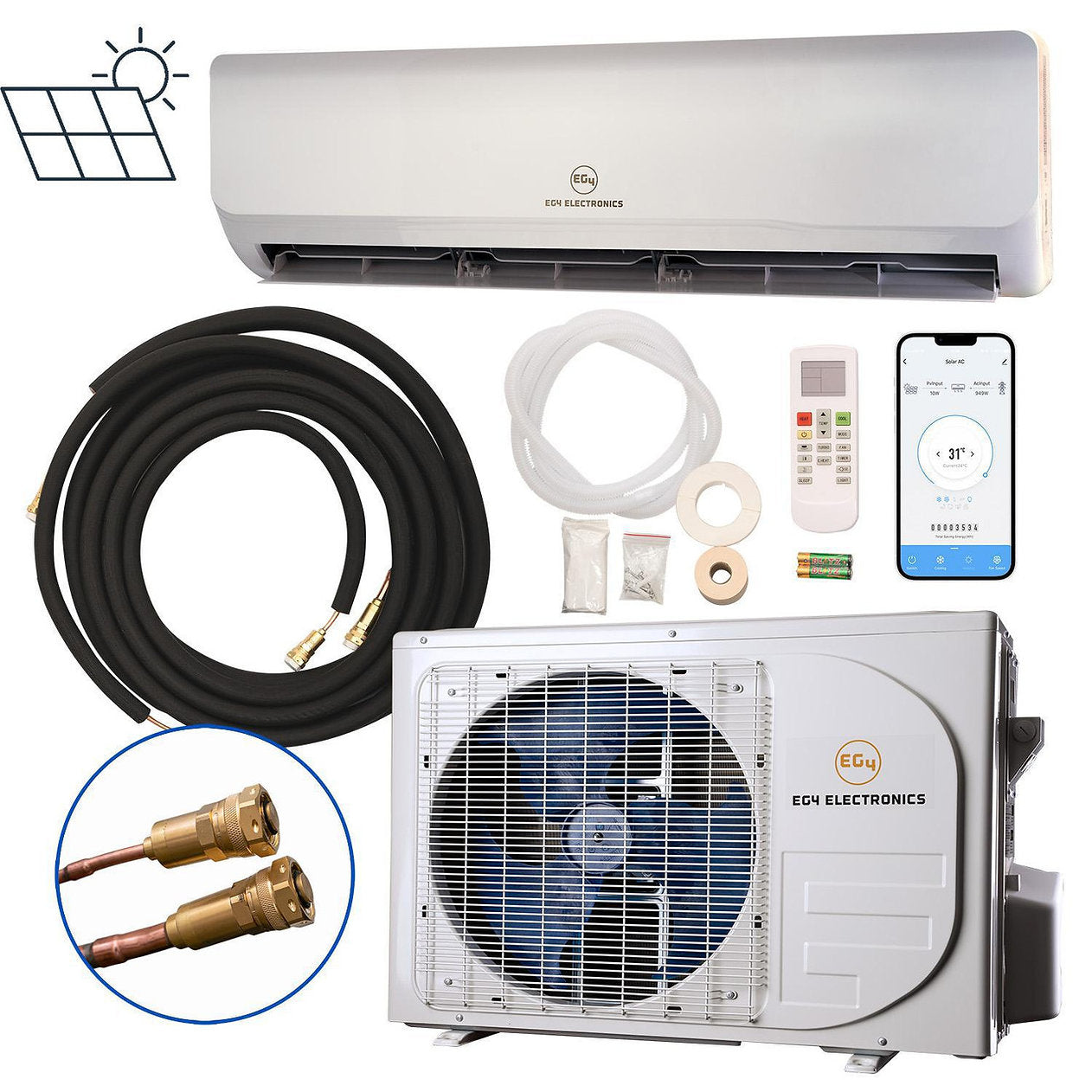

This EG4 12K hybrid mini-split is a dual-power AC/DC air conditioner and heat pump that can run directly off solar panels during the day and fall back to standard AC power when needed — no inverter or battery required to run it on solar. Built-in MPPT lets you wire panels straight into the unit, and EG4's Plug-N-Cool design keeps installation DIY-friendly. A good match for a bedroom, shop, or single-room addition that needs efficient climate control powered largely by the sun.
Key Specs:
- Capacity: 12,000 BTU (11,000 BTU/h cooling / 13,500 BTU/h heating, nominal)
- SEER2 Rating: 21.5
- AC Input: 115VAC, 190-1100W power draw
- DC/Solar Input: 90-380VDC, up to 1,100W PV, 380V max PV voltage
- Refrigerant: R410A
- Certifications: ENERGY STAR
- Warranty: 5-year limited
Pair with EG4 or compatible solar panels to run air conditioning primarily off solar without cycling it through batteries and an inverter.
Documents
- EG4 12K/24K Hybrid Mini-Split AC/DC (R32) Spec Sheet — covers 12K and 24K hybrid models (PDF · source: )
Documents are published by the manufacturer and hosted here for convenience. Always check the manufacturer's site for the latest revision.
