IronRidge

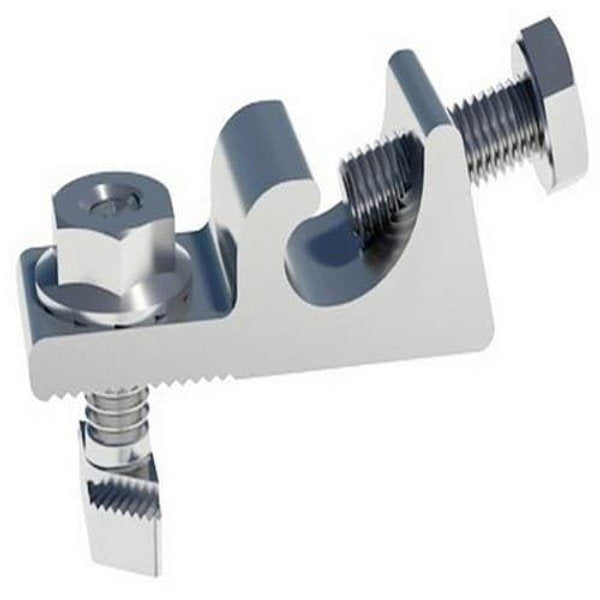

IronRidge XR-LUG-03-A1 Grounding Lug, Low Profile
IronRidge XR-LUG-03-A1 Grounding Lug, Low Profile
Regular price
$9.49 USD
Regular price
Sale price
$9.49 USD
Quantity
Couldn't load pickup availability
A low-profile grounding lug from IronRidge, used to bond XR rail and racking components to your system's grounding conductor for a code-compliant, properly grounded solar array. The low-profile design keeps clearances tight under panels and rail.
Key Specs:
- Type: Grounding lug, low profile
- Part Number: XR-LUG-03-A1
- Compatibility: IronRidge XR rail systems
Documents
- IronRidge Product Catalog (v3.66) (PDF · source: ironridge.com)
- UFO Family Tech Brief - Simplified Grounding for Every Application (PDF · source: base.ironridge.com)
- XR Flush Mount Installation Manual (v5.2) (PDF · source: base.ironridge.com)
- UL 2703 Authorization to Mark - XR Rails with Integrated Grounding (PDF · source: ironridge.com)
Documents are published by the manufacturer and hosted here for convenience. Always check the manufacturer's site for the latest revision.
