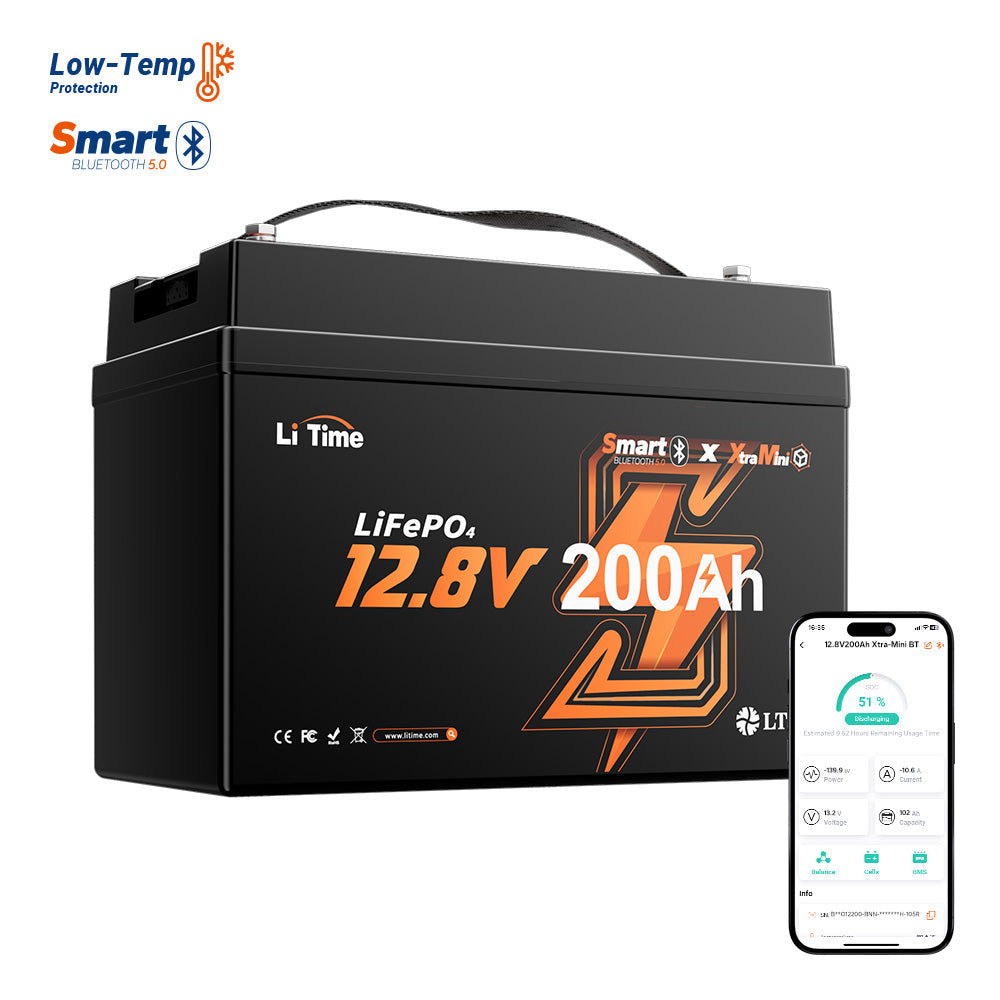

LiTime 12V 200Ah Xtra Mini Smart LiFePO4 Battery – Group 31 Size, Bluetooth, 200A BMS

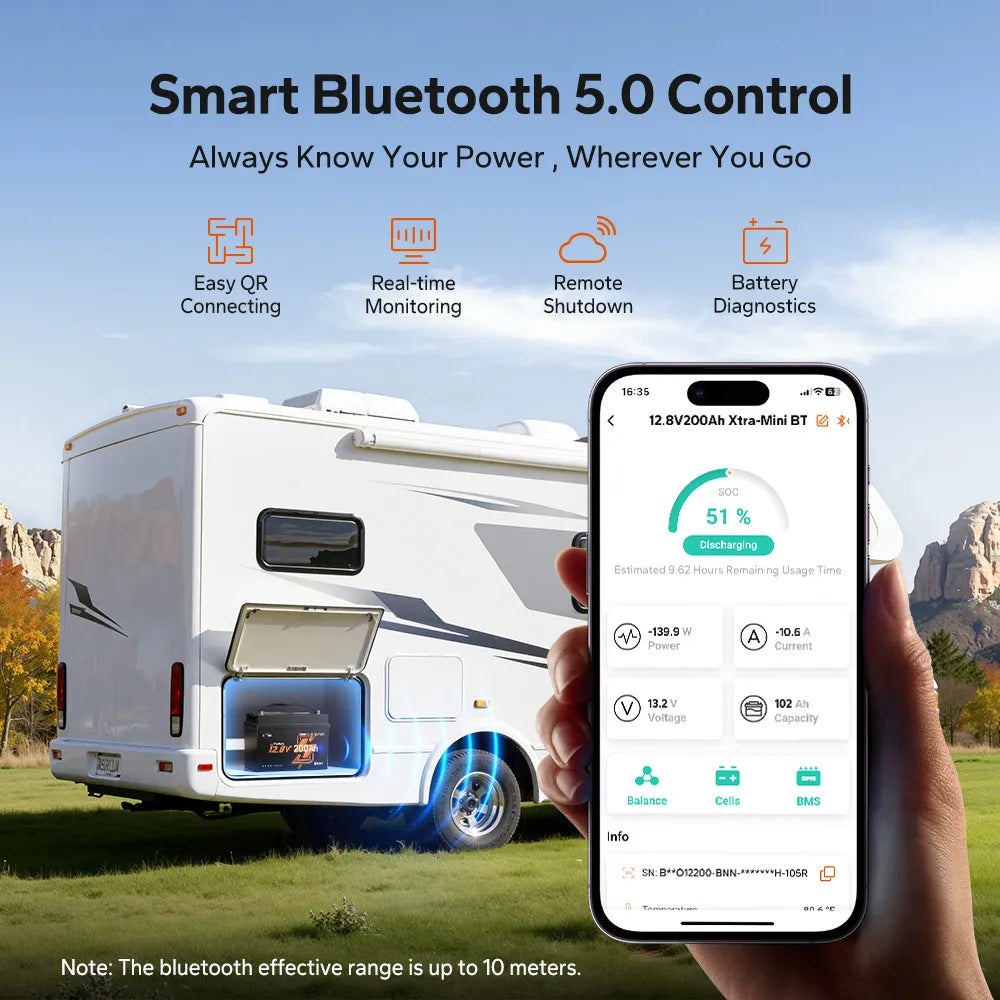

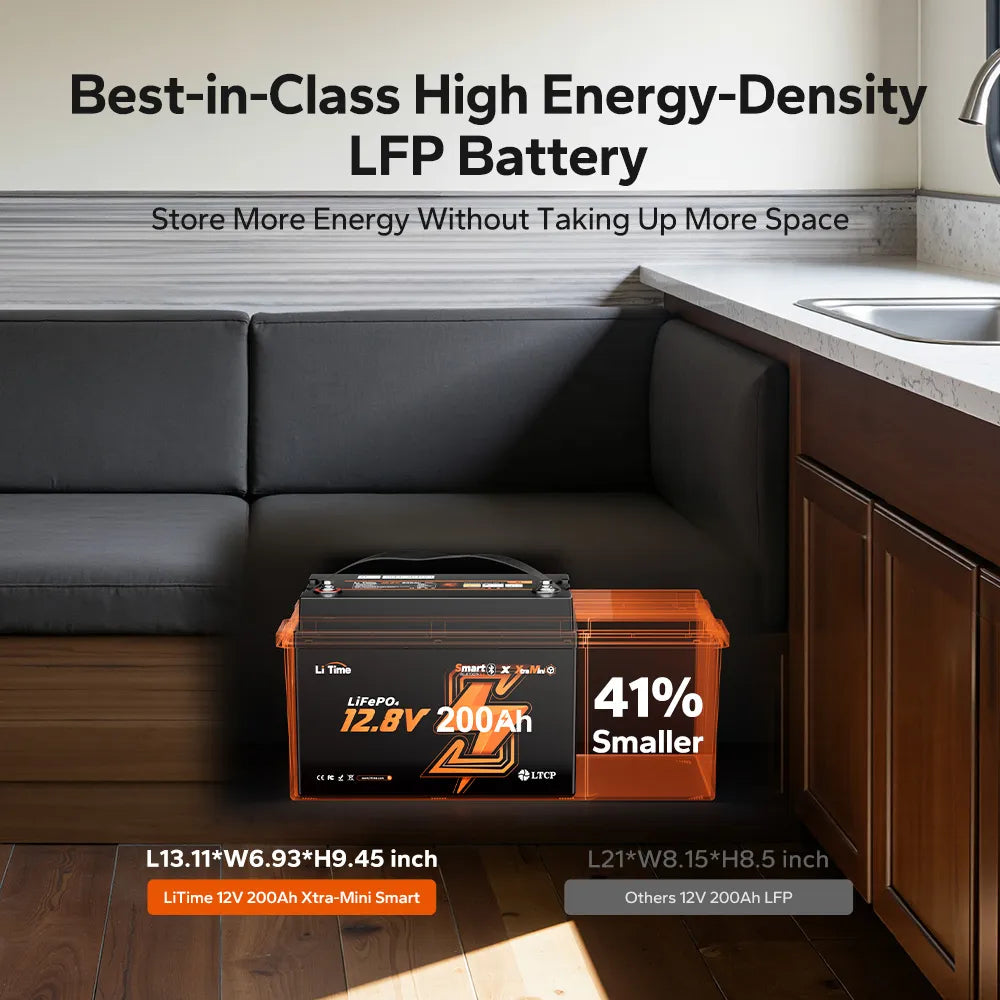

The LiTime 12V 200Ah Xtra Mini Smart packs a full 200Ah (2560Wh) into a near-Group 31 case — about 41% smaller than a standard 12V 200Ah lithium battery and light enough for a one-person install at 44.5 lb. It's the easy upgrade for RV and van battery bays sized for a single Group 31 or a pair of lead-acids: twice the usable energy, no rebuilding the compartment. Built-in Bluetooth 5.0 lets you check state of charge, voltage, current and cycle count from the LiTime app, and a 200A BMS with low-temperature protection guards the cells in cold weather.

Key Specs:

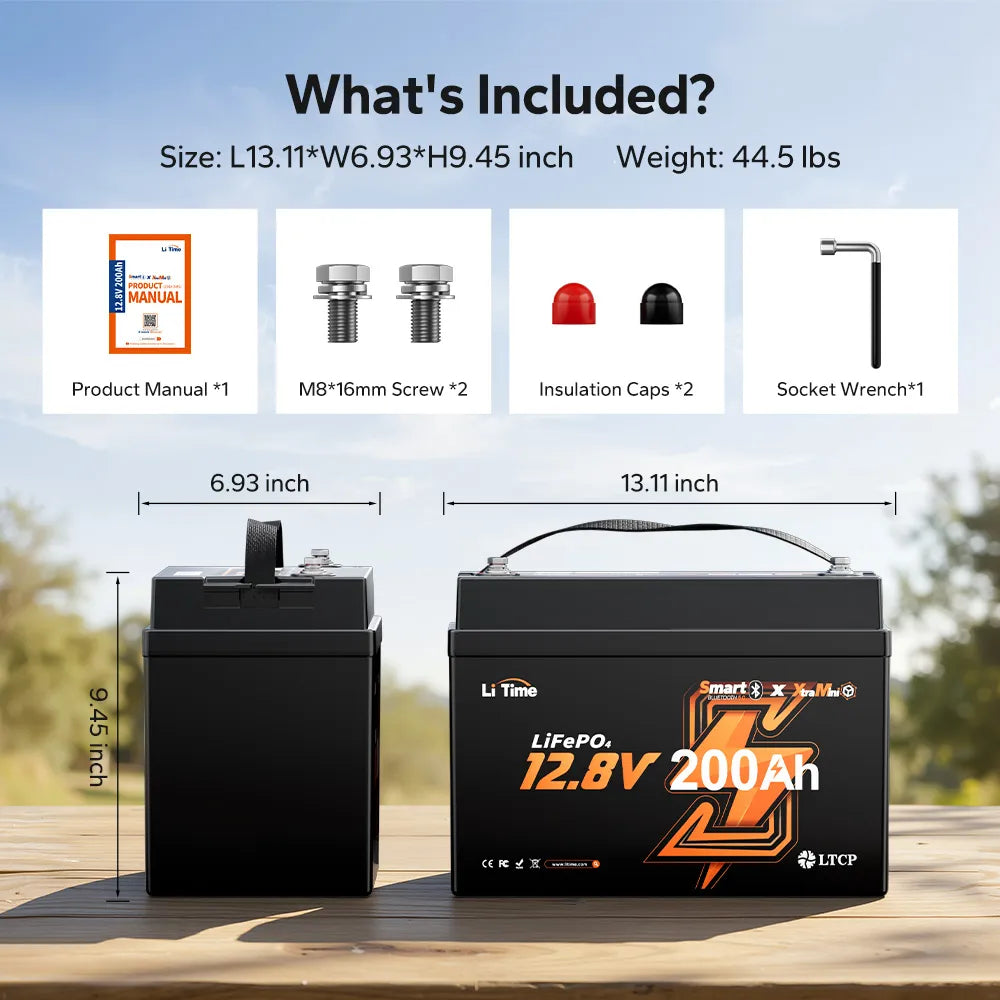

• Dimensions: 13.11 x 6.93 x 9.45 in (13.11 x 6.93 x 10.04 in including terminals)

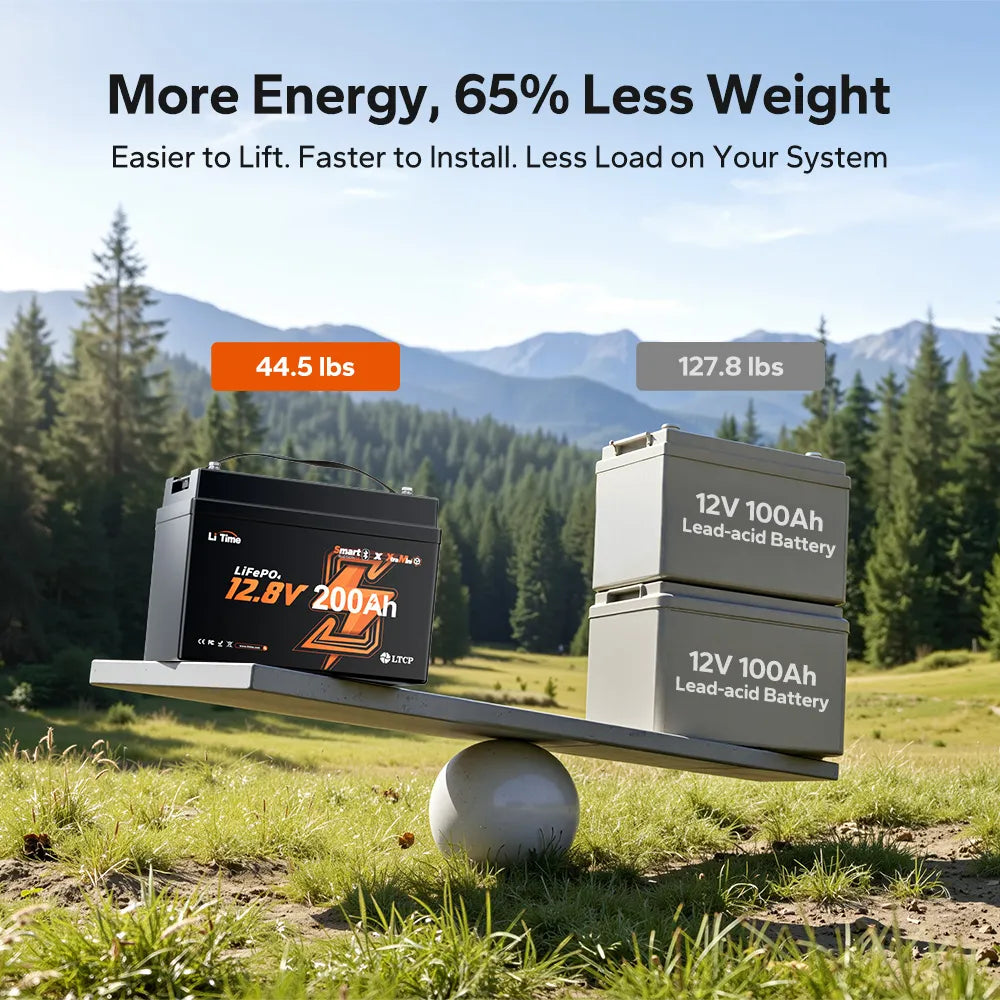

• Weight: 44.5 lb
• Nominal Voltage: 12.8V
• Capacity / Energy: 200Ah / 2560Wh

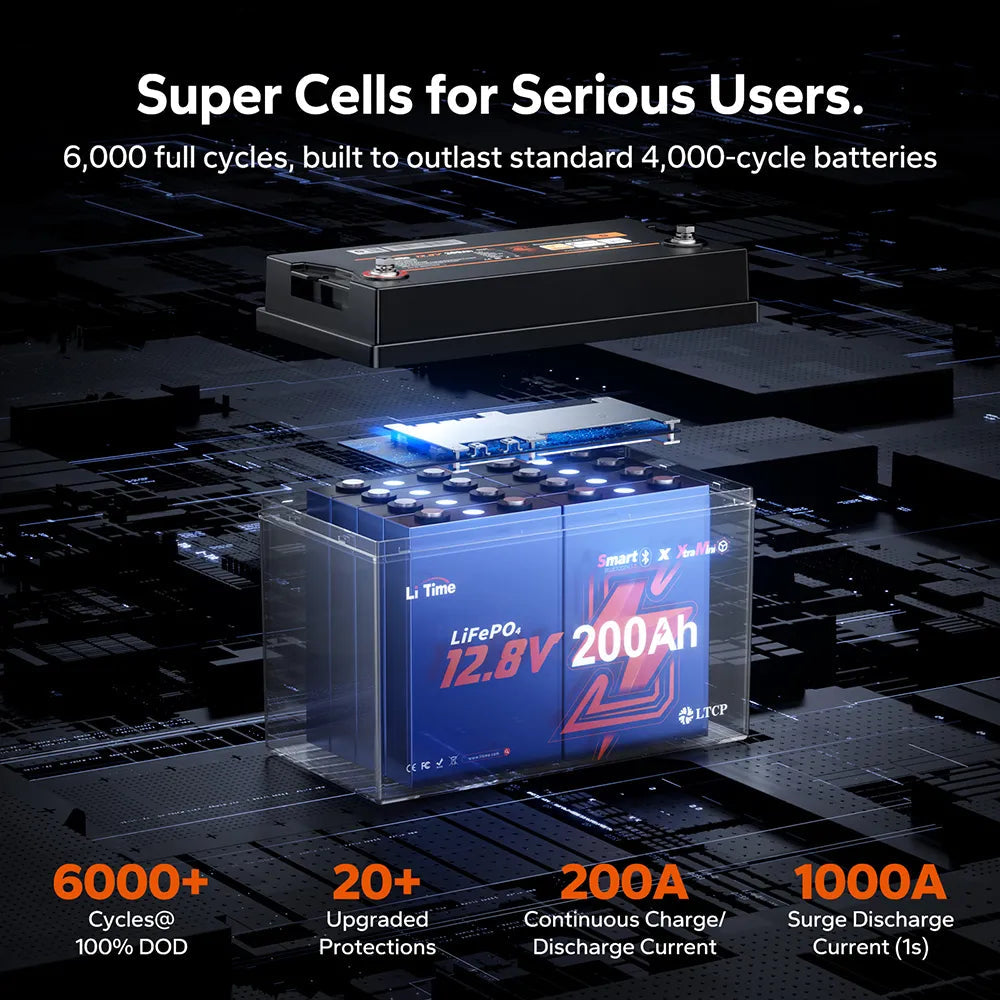

• BMS: 200A continuous charge and discharge (1C), 1000A peak for 1 second; 2560W continuous output
• Charge Voltage: 14.4V ± 0.2V (CC/CV); recommended charge current 40A
• Cycle Life: 6000+ cycles at 100% DOD
• Low-Temp Protection: charging stops below 32°F (0°C), resumes at 41°F (5°C); discharging stops below -4°F (-20°C)
• Operating Temperature: charge 32–122°F (0–50°C); discharge -4–140°F (-20–60°C)
• Expansion: up to 4 in series and 4 in parallel (4P4S, 51.2V 800Ah / 40.96kWh)
• Bluetooth: Yes, Bluetooth 5.0 via the LiTime app
• Terminals: M8 x 16mm
• Case: ABS, IP65 waterproof and dustproof
• Certifications: FCC, CE, RoHS, UN38.3
• Warranty: 5 years

Good to know: This is a deep-cycle house battery — do not use it as an engine starting battery or in a golf cart. When paralleling or series-connecting, use identical batteries bought at the same time. If the BMS ever trips into protection, reactivate it with a LiFePO4 charger that has an activation function.
