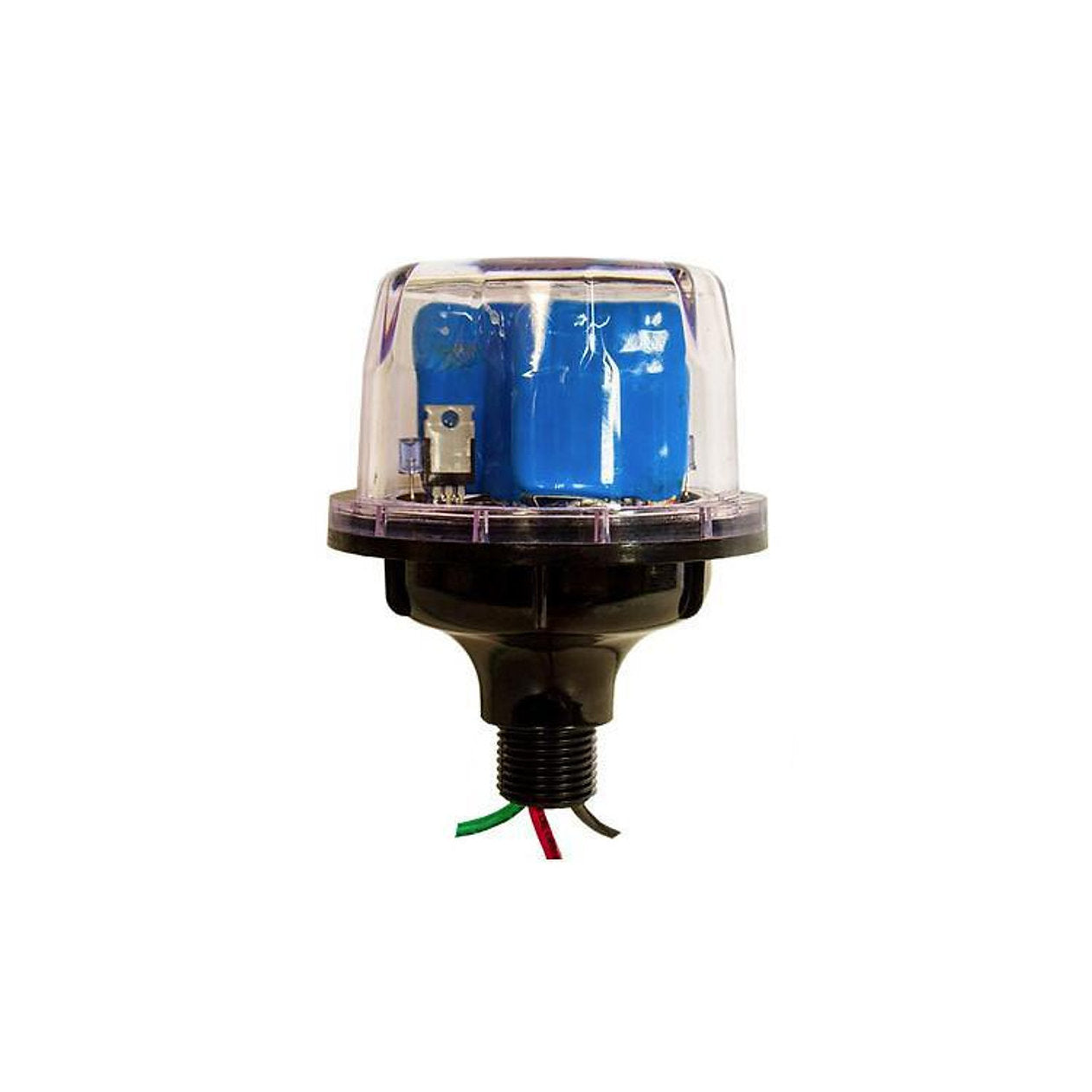

Midnite Solar Lightning and Surge Arrestor 300AC (MNSPD-300-AC)

The MidNite Solar MNSPD-300-AC is an AC-side surge protection device, sized for 120/240VAC circuits, that protects your inverter, loads, and connected equipment from lightning-induced and switching surges coming through the AC wiring. It's a low-cost way to protect a much more expensive inverter and downstream electronics from a single bad surge event.

Key Specs:

• Nominal Voltage: 0-250VAC
• Max Continuous Operating Voltage (MCOV): 470V (423-517V)
• Nominal Discharge Current: 57.5kA
• Peak Current: 115kA (full device) / 57.5kA (each section)
• Energy Absorption: 3130J (full device) / 1560J (each section)
• Response Time: <1 microsecond
• Operating Temperature: -40°C to +85°C
• Indicators: Dual operating LEDs
• Protection: Internal thermal disconnect

Suited for 120/240VAC circuits, indoors or outdoors. Pair with a DC-side arrestor (like the MNSPD-600) for complete surge protection on both sides of your system.
