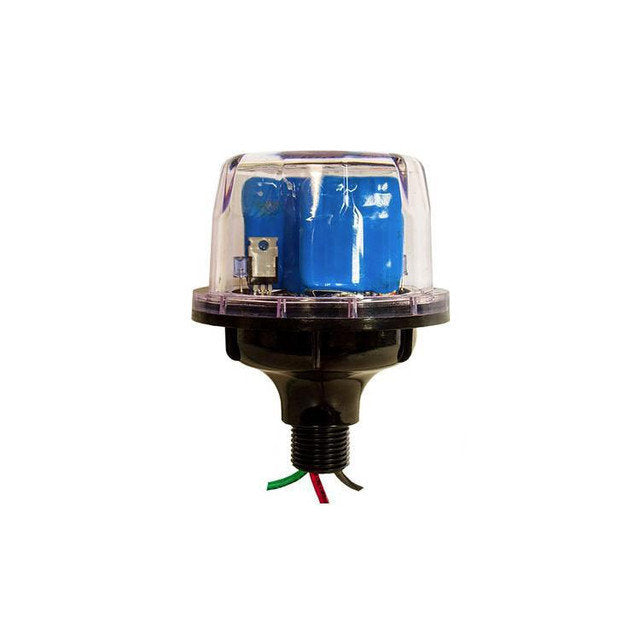

Midnite Solar Lightning and Surge Arrestor 600DC (MNSPD-600)

The MidNite Solar MNSPD-600 is a DC surge protection device that shunts lightning-induced and switching surges away from your inverter, charge controller, and other sensitive DC equipment — cheap insurance against a single close lightning strike destroying thousands of dollars in solar electronics. Install it at the combiner box, inverter, or charge controller DC input for the best protection.

Key Specs:

• Nominal Voltage Range: 0-485VAC / 0-640VDC
• Max Continuous Operating Voltage (MCOV): 780V (702-858V)
• Peak Current: 115kA (full device) / 57.5kA (each section)
• Energy Absorption: 4320J (full device) / 2160J (each section)
• Response Time: <1 microsecond
• Operating Temperature: -40°C to +85°C
• Indicators: Dual operating LEDs
• Protection: Internal thermal disconnect

Rated for both indoor and outdoor installation. Pair with an AC-side arrestor (like the MNSPD-300-AC) for complete surge protection on both the DC and AC sides of your system.
