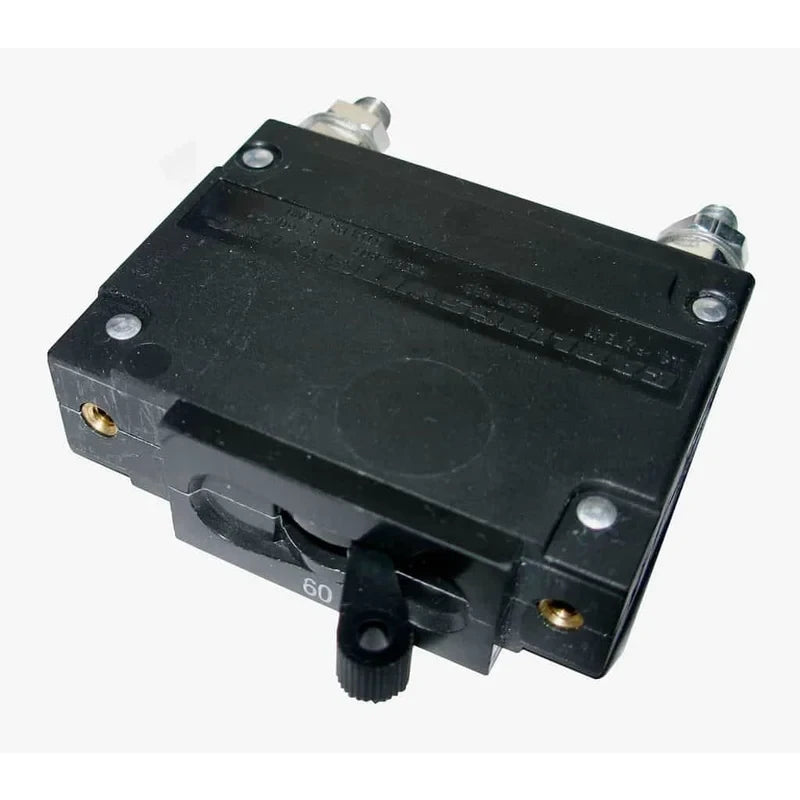

Midnite Solar MNEDC Resettable Breakers (for MNEDCQUAD)

These resettable breakers are designed to fit the Midnite Solar MNEDCQUAD electrical box — four MNEDC breakers fit into one MNEDCQUAD, or they can be surface mounted individually with M4 bolts.

Key Specs:

• Rating: 15–100 Amps
• Voltage: Up to 150V DC
• Polarity: Non-polarized
• Terminals: Rear posts fit 1/4" lug ring terminals
• Dimensions: 10.08 x 5.75 x 0.87 in.
• Weight: 0.26 lbs

MNEDC-style breakers take a little more work to install than MNEPV breakers due to their lug-style terminals, but the connection is highly secure and vibration-resistant, and they offer DC circuit protection up to 100A — well beyond the 63A max of MNEPV breakers.
