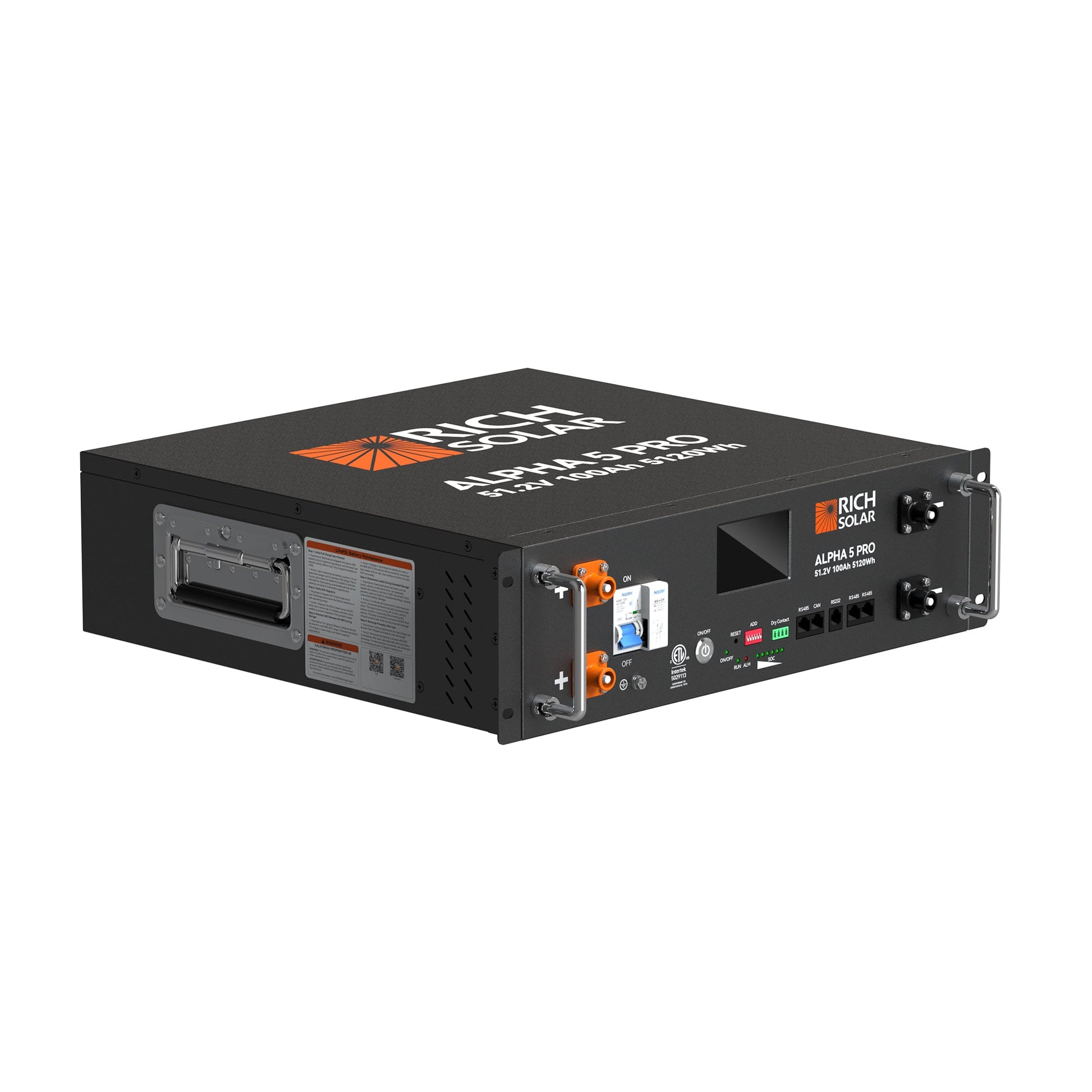

Rich Solar ALPHA 5 PRO 51.2V 100Ah LiFePO4 Server Rack Battery
Rich Solar ALPHA 5 PRO 51.2V 100Ah LiFePO4 Server Rack Battery
Couldn't load pickup availability
The Rich Solar ALPHA 5 PRO is the flagship 51.2V 100Ah server rack battery, delivering 5,120Wh per module from Grade A prismatic LiFePO4 cells rated for more than 7,000 cycles at 80% depth of discharge. A 150W subzero heater kicks in below 41°F so the pack charges reliably in cold climates, and the advanced BMS supports 100A continuous charge and discharge with full protection coverage. CAN, RS485, RS232, and dry contact communication make it compatible with a wide range of inverters, and up to 30 batteries can be paralleled for large residential or commercial banks. Wi-Fi and Bluetooth monitoring, an LCD touchscreen with LED indicators, UL1973 and UL9540A certification, and a 10-year warranty round out a system-ready energy storage module.
Specifications
| Nominal voltage | 51.2V |
| Capacity | 100Ah |
| Energy | 5,120Wh |
| Chemistry | LiFePO4, Grade A prismatic cells |
| Continuous discharge | 100A |
| Max charge current | 100A |
| Cycle life | 7,000+ cycles at 80% DoD |
| Parallel capability | Up to 30 units |

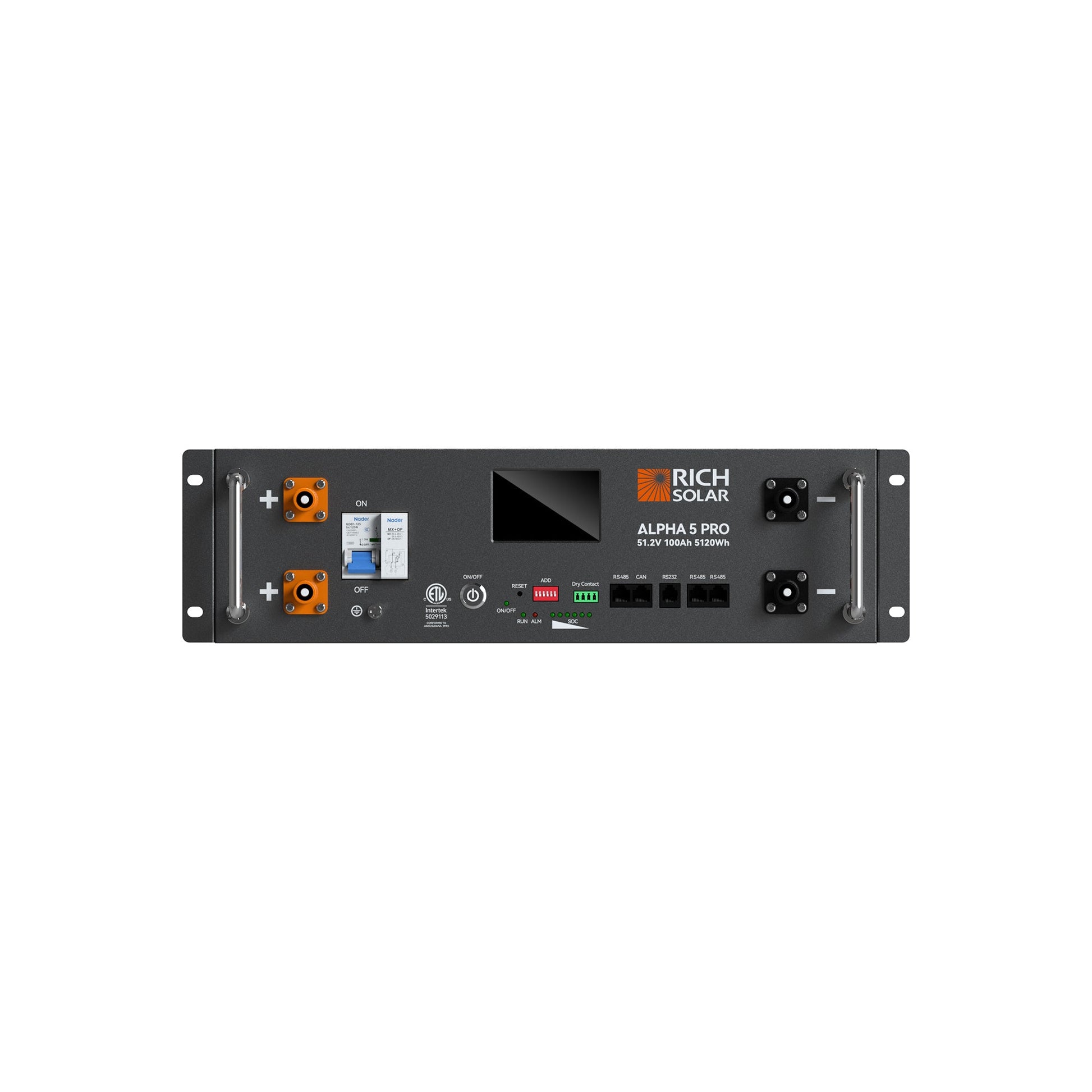

| Monitoring | Wi-Fi, Bluetooth, LCD touchscreen, LED indicators |
| Self-heating | Yes — 150W heater, activates below 41°F |

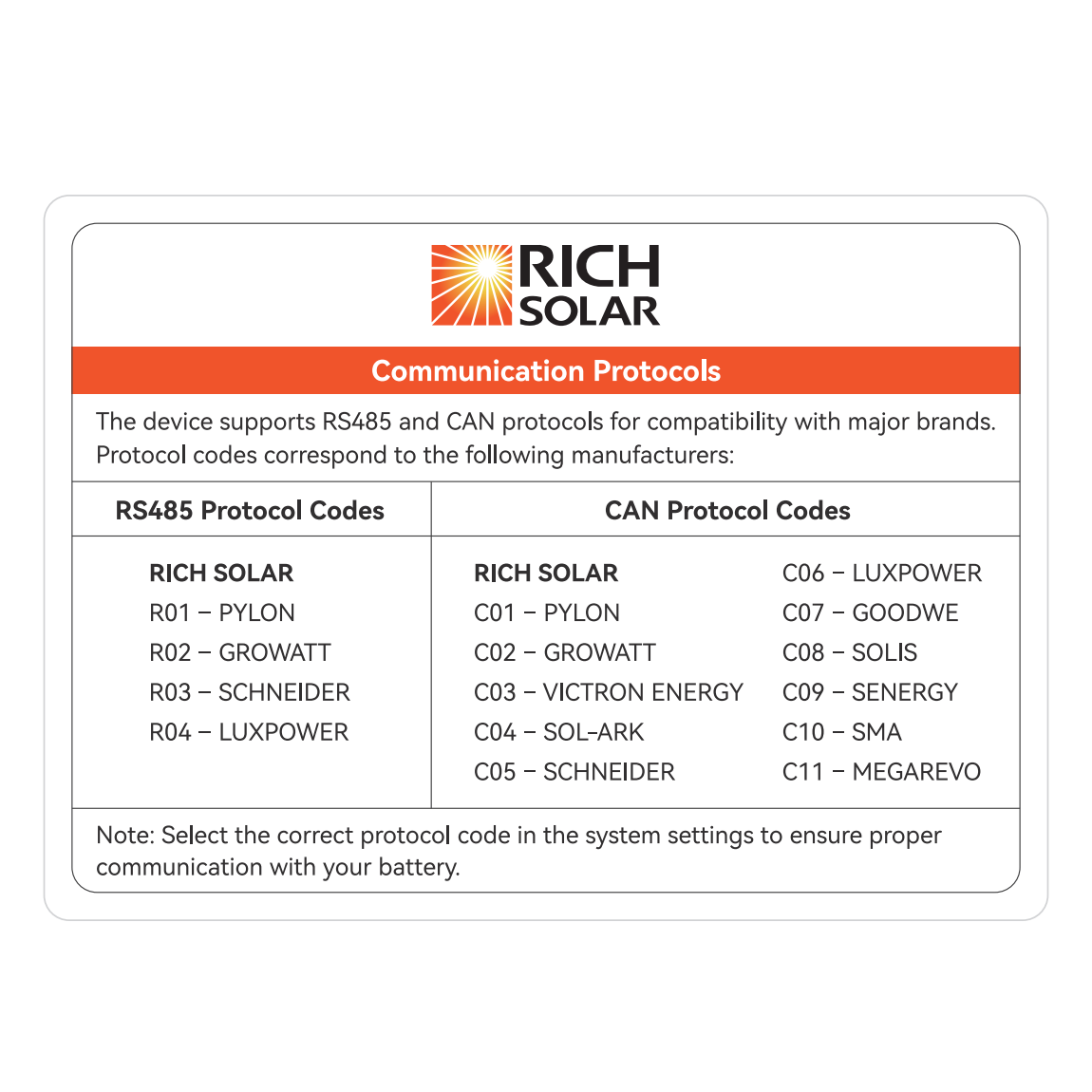

| Communication | CAN / RS485 / RS232 / dry contact |
| Form factor | 19 in rack mount |
| IP rating | IP21 |
| Dimensions | 17.7 x 17.8 x 5.2 in |
| Weight | 100.9 lb net |
| Operating temp (discharge) | -4°F to 149°F |
| Certification | UL1973, UL9540A, FCC, UN 38.3 |
| Warranty | 10 years |
