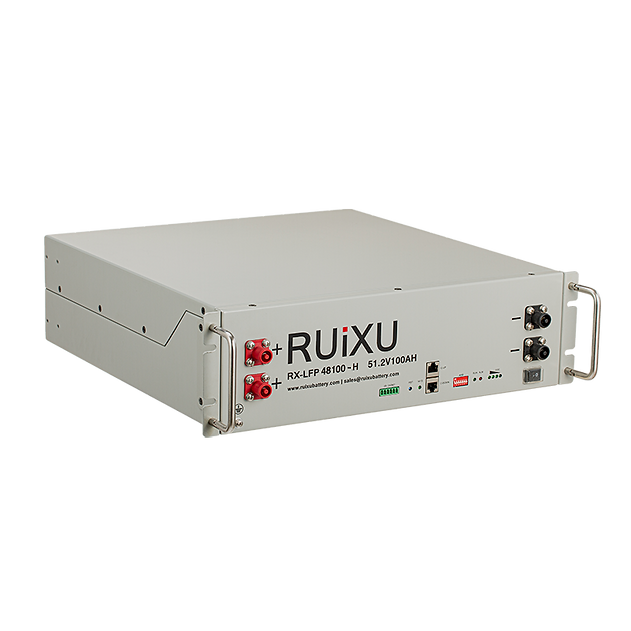

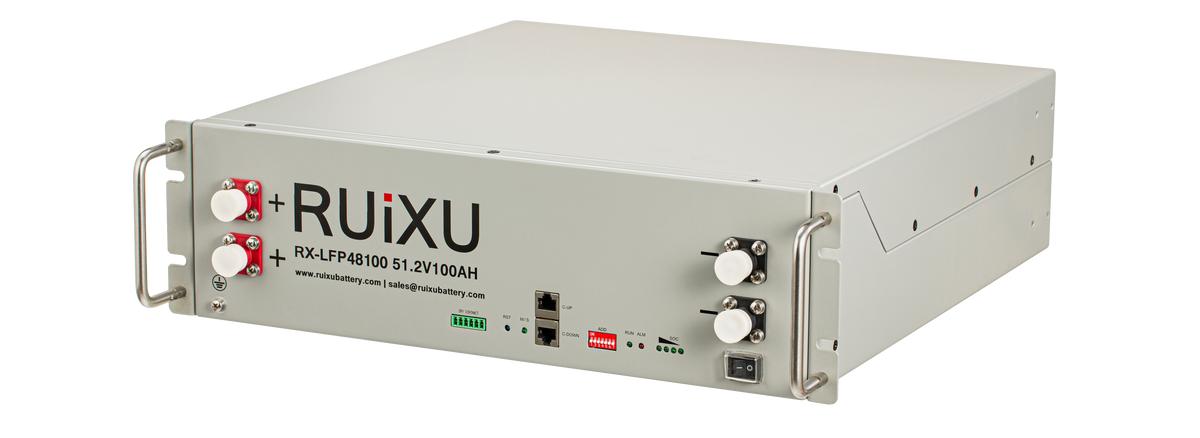

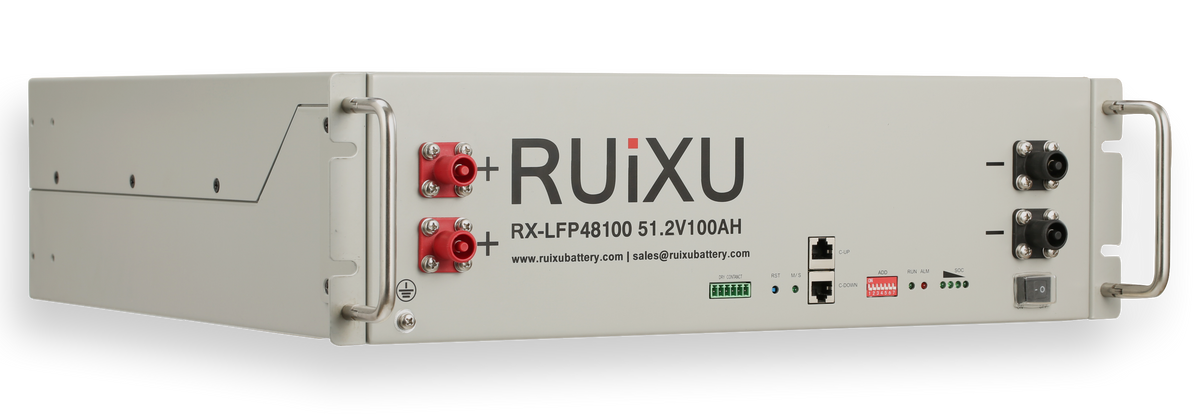

RUiXU RX-LFP48100 48V 100Ah 5.12kWh 19 Inch Server Rack Mounted Battery

The RUiXU RX-LFP48100 is a 19 inch rack-mounted LiFePO4 battery module built to stack cleanly in a server rack or RUiXU's battery cabinets and bracket racks. It's a flexible building block for scaling a 48V system — start with a single module and add more in parallel as your storage needs grow, without an external controller.

Key Specs:

• Rated Voltage: 51.2V (44.8-57.6V range)
• Capacity: 100Ah / 5.12kWh (4.92kWh usable)
• Chemistry: LiFePO4
• Standard/Max Charge Current: 50A / 70A
• Standard/Max Discharge Current: 50A / 100A (peak 101-150A, 5-second bursts)
• Form Factor: 19 inch rack-mount, 3U

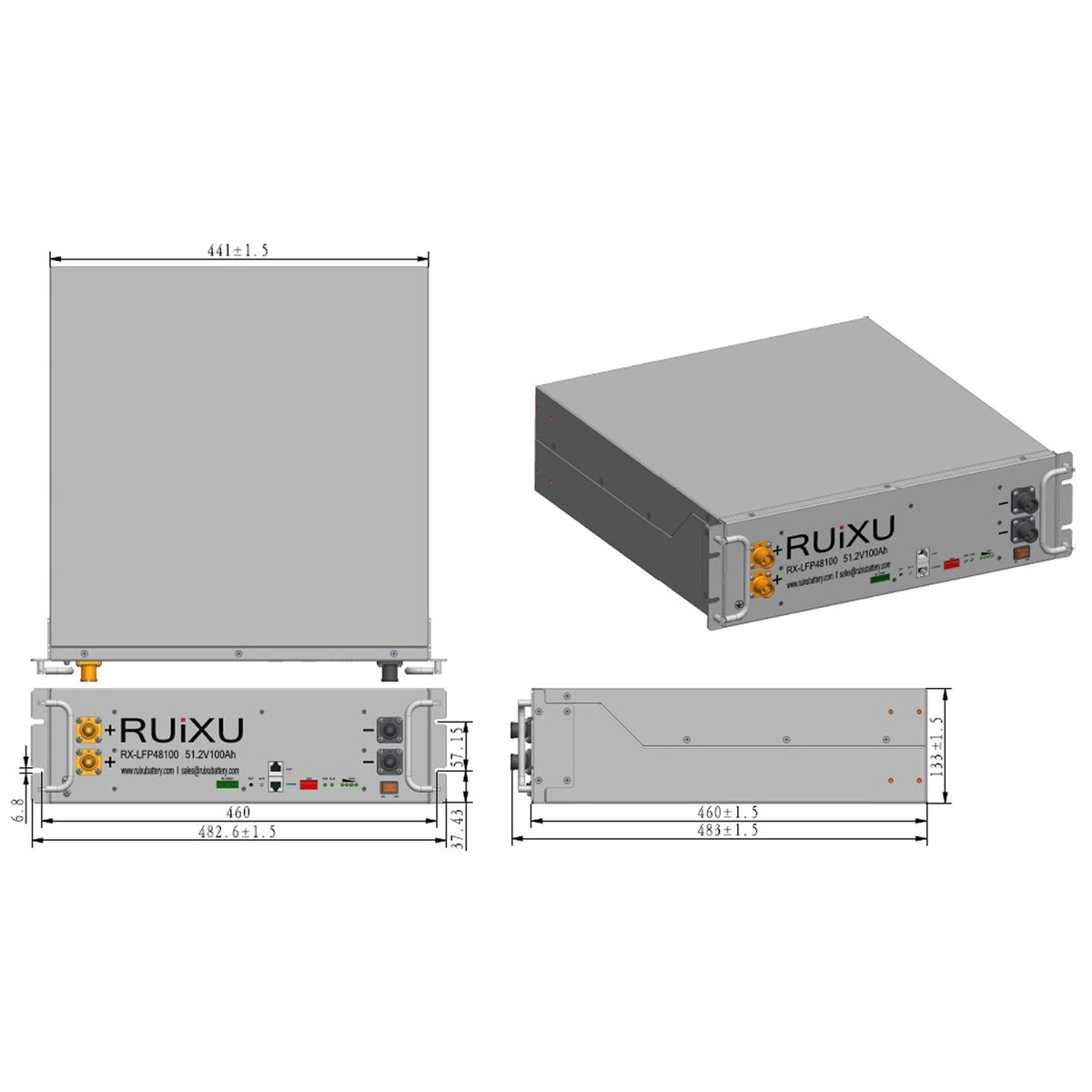

• Dimensions: 482 x 133.5 x 460mm (18.9 x 5.2 x 18.1 in.)
• Weight: ~110 lbs (50kg)
• Operating Temperature: 32-122°F (charge), -4-122°F (discharge)
• Communication: RS485/CAN, compatible with Victron, SMA, Sofar, Sol-Ark, Solis, Growatt, and others
• Expandability: up to 32 units in parallel (5kWh-160kWh)
• Certifications: UL 1973 certified, UL 9540 pending

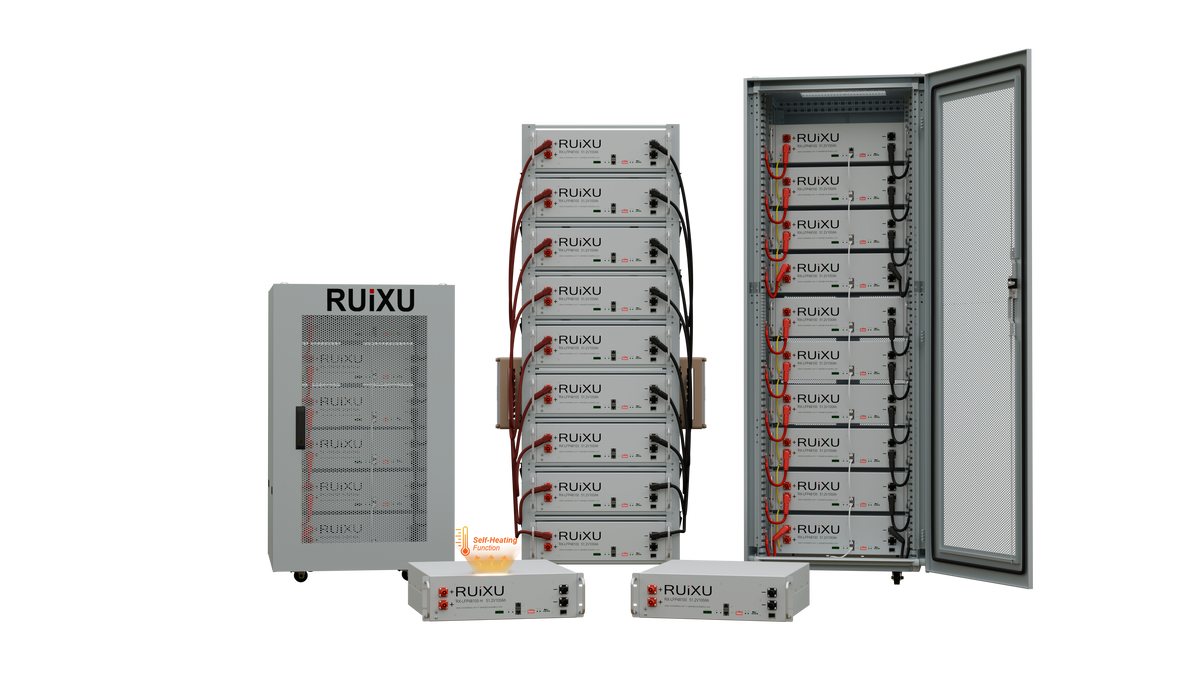

Pairs with RUiXU's bracket rack or 6/10-slot battery cabinets for an organized, stackable installation.
