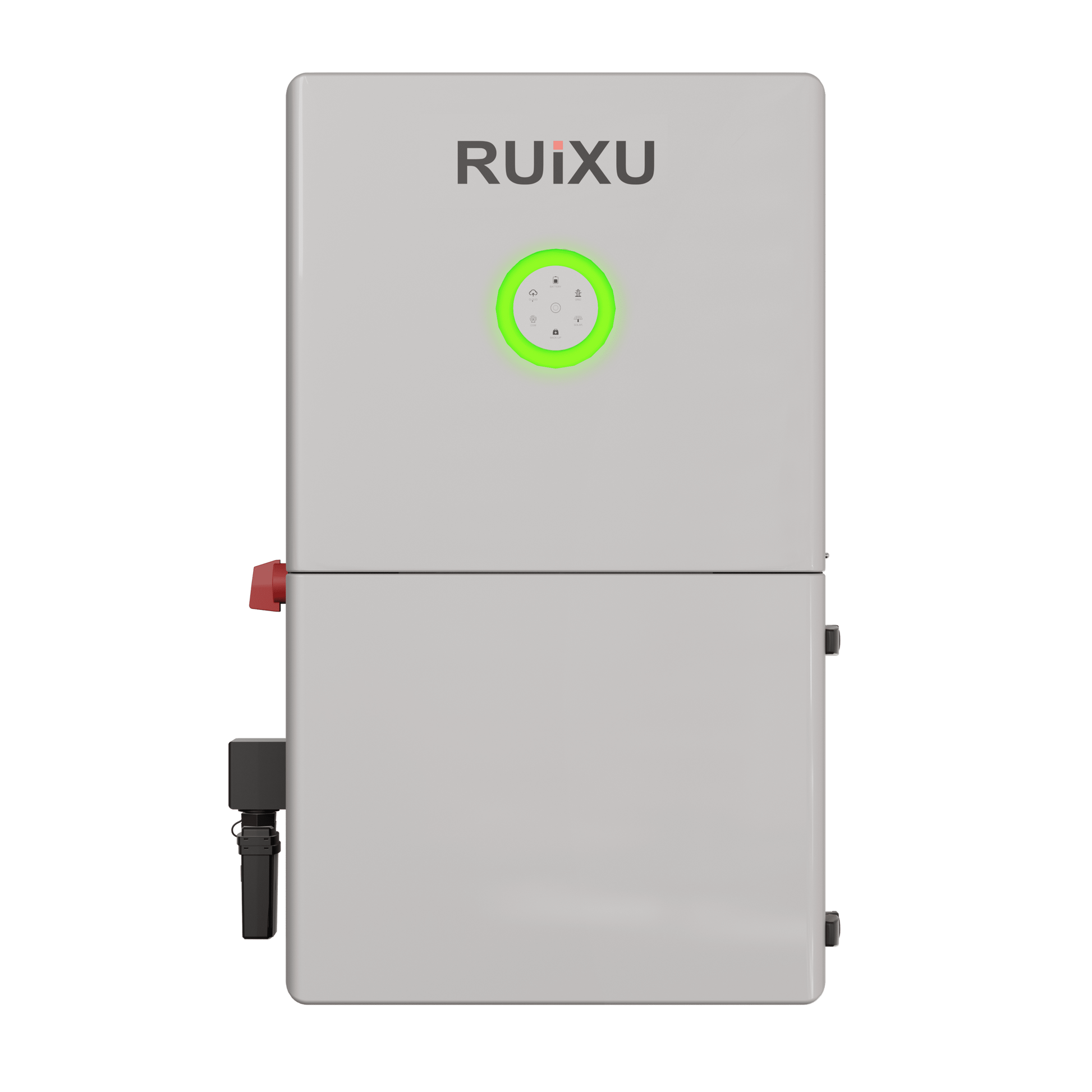

RUiXU RX-12K 12kW Split-Phase Hybrid Inverter

The RUiXU RX-12K is a 12kW split-phase hybrid inverter with grid-tie capability, four MPPTs, and a 200A integrated transfer relay — built for whole-home backup and large off-grid solar systems.

Key Specs:

• Output Power: 12kW (up to 11.4kW continuous with the integrated 200A transfer relay)
• Output: Split-phase 120/240V or 120/208V
• Battery Voltage: 48V, flexible configuration
• Solar Input: 17.1kW PV input across four MPPTs
• UPS Switchover: ≤20ms
• Weather Rating: IP65
• Certifications: UL1741
• Battery Compatibility: lithium and lead-acid

With four independent MPPTs and high PV input capacity, the RX-12K is well suited for larger arrays and homes that need dependable split-phase power on and off the grid.
