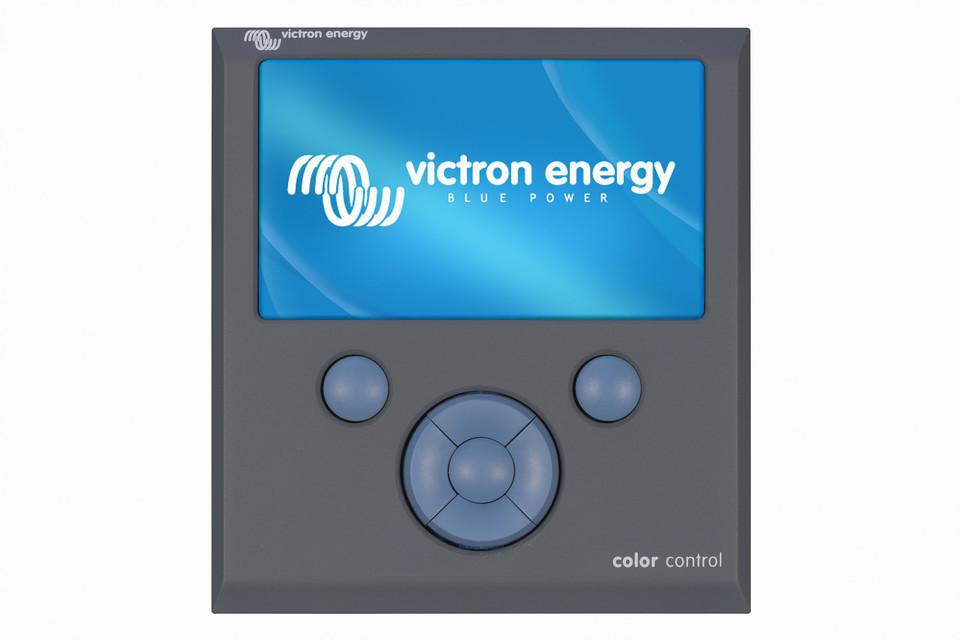

Victron Color Control GX Panel for System Monitoring

The Victron Color Control GX (CCGX) is the central brain of a Victron-based power system, giving you a single touchscreen display to monitor and control every connected Victron device — inverters, chargers, solar controllers, and battery monitors — in one place. It also enables remote monitoring through the VRM Portal from anywhere with an internet connection.

Key Specs:

• Display: Integrated color touchscreen
• DC Input Voltage Range: 8 - 70V DC
• Current Draw at 12V: 140mA (display off) to 245mA (max brightness)
• Connectivity: 2x VE.Direct (isolated), 2x VE.Can (RJ45), 2x VE.Bus (RJ45), 2x USB host ports, 10/100/1000 Ethernet (RJ45)
• Dimensions (H x W x D): 130 x 120 x 28 mm
• Operating Temperature: -20°C to +50°C

Ideal for anyone running multiple Victron components who wants centralized monitoring, remote diagnostics, and system-wide control from a single panel.
