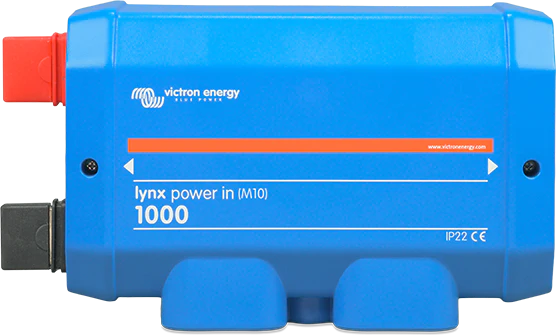

Victron Lynx Power In

The Victron Lynx Power In is the entry point for a modular Lynx DC distribution system, delivering power from your battery bank into a clean, high-current busbar that other Lynx components connect to. It's built to handle serious current while keeping large battery banks safe, tidy, and free of exposed terminals.

Key Specs:

• Maximum Continuous Current: 1000A DC
• Voltage Range: 9 - 60V DC
• Busbar: Tinned copper, 8 x 30mm, M8 or M10 terminals
• Enclosure Material: ABS, IP22 rated
• Dimensions: 290 x 170 x 80mm
• Weight: 2.1 kg
• Operating Temperature: -40°C to +60°C

A solid foundation for larger 12V, 24V, or 48V systems built around the Victron Lynx distribution platform.
