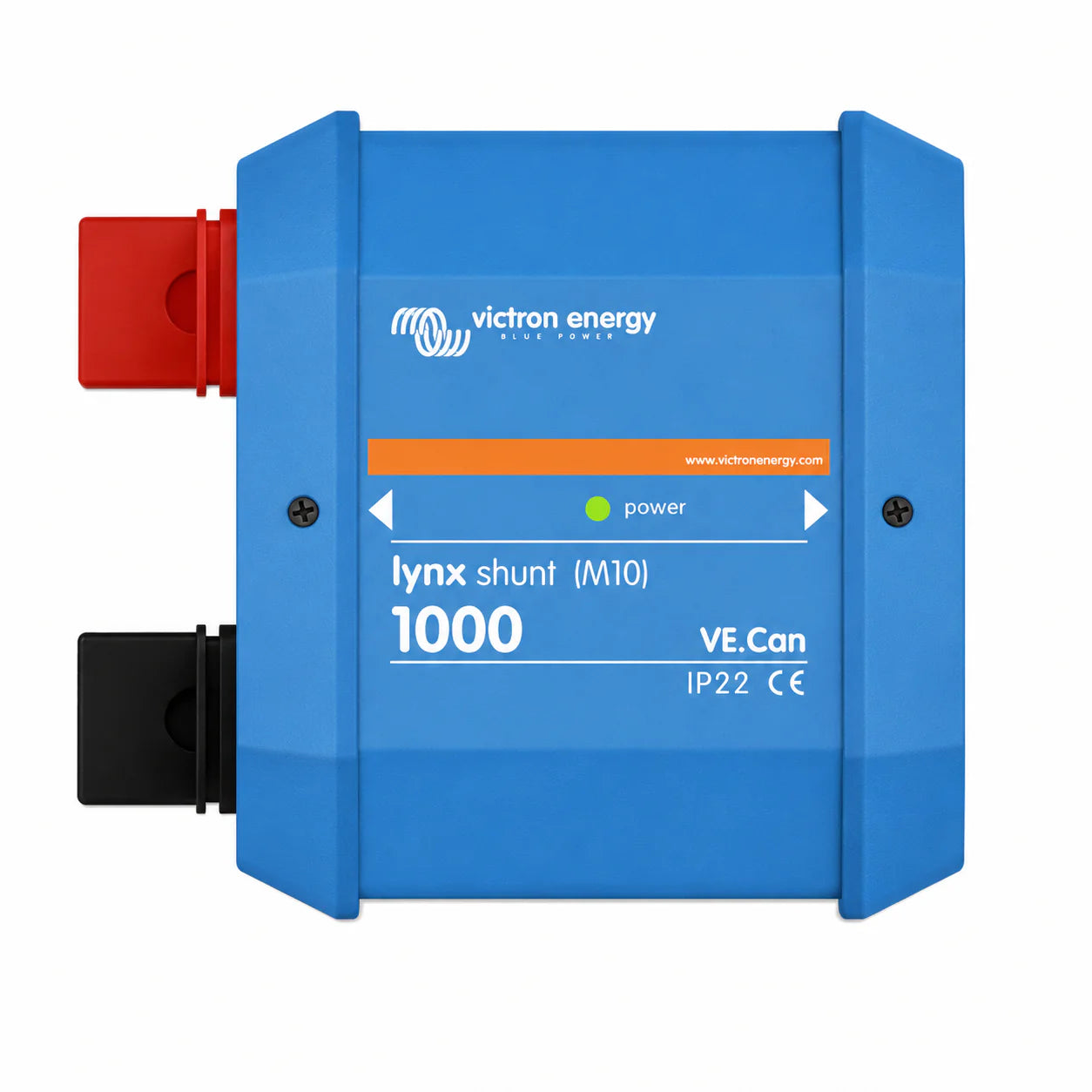

Victron Lynx Shunt VE.Can

The Victron Lynx Shunt VE.Can combines a high-current busbar, main fuse holder, and precision battery monitor in one Lynx-compatible unit — giving you accurate state-of-charge monitoring right at the heart of your DC distribution system, with results shown on a connected GX device over VE.Can.

Key Specs:

• Maximum Continuous Current: 1000A DC
• Voltage Range: 9 - 70V DC (12V, 24V, or 48V systems)
• Power Draw: 20-60 mA depending on system voltage
• Fuse Housing: M8 (accepts a MEGA fuse on M6 bolts)
• Communication: VE.Can (RJ45)
• Additional Connections: RJ10 for Lynx Distributor link, relay screw terminal, temperature sensor input
• Enclosure: ABS, IP22 rated
• Dimensions: 190 x 180 x 80mm
• Weight: 1.4 kg
• Operating Temperature: -40°C to +60°C

Ideal for larger battery banks where you want integrated main fusing and accurate monitoring without extra wiring.
