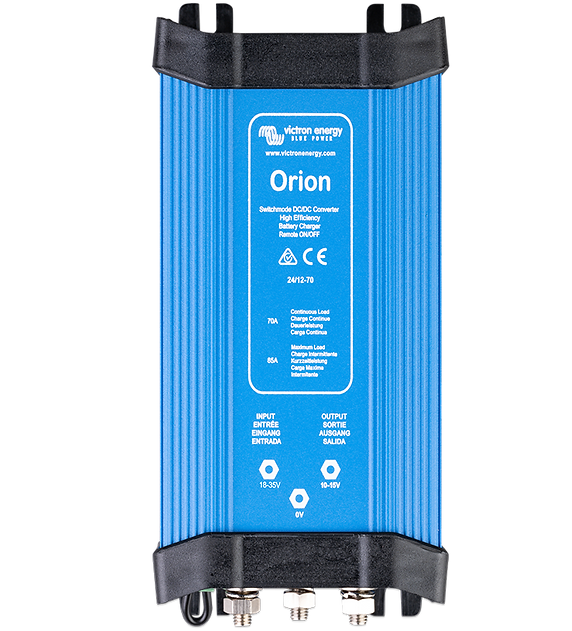

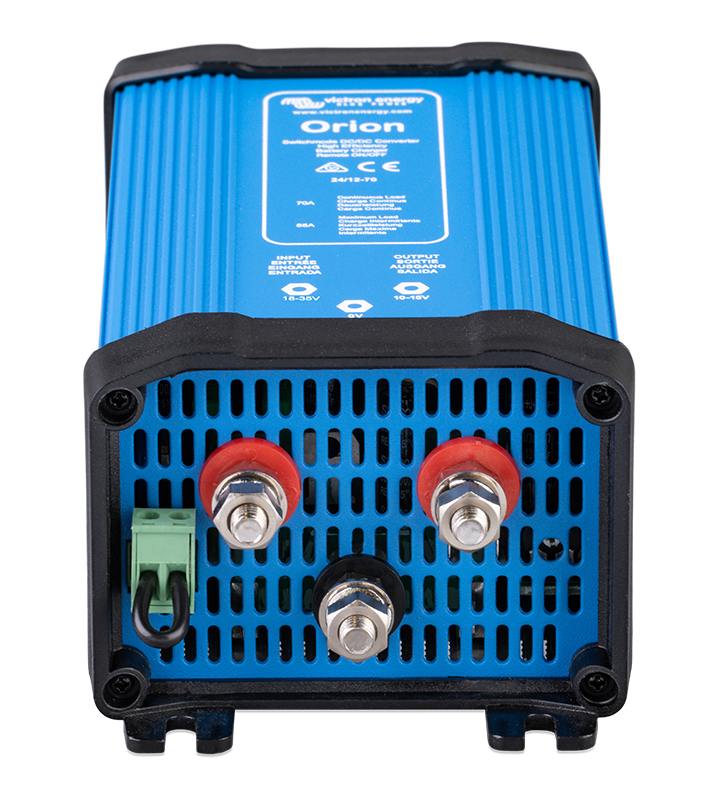

Victron Orion 24/12-70 DC-DC Converter IP20

The Victron Orion 24/12-70 is a non-isolated DC-DC converter that steps 24V down to a regulated 12V supply — commonly used to charge a 12V accessory or starter battery in an otherwise 24V system. Remote on-off support lets you trigger it from a low-power switch or the engine run/stop circuit instead of wiring a high-current switch, and up to five units can be paralleled to increase output current.

Key Specs:

• Input Voltage Range: 18-35V
• Under Voltage Shutdown: 14V / Restart: 18V
• Output Voltage: Adjustable 10-15V (factory set 13.2V)
• Continuous Output Current: 70A
• Max Output Current: 85A
• Efficiency: 92%
• Galvanic Isolation: No
• Off-load Current Draw: <20mA
• Cooling: Fan-assisted, temperature controlled
• Enclosure Rating: IP20
• Remote On-Off: Yes

Includes four insulated 6.3mm female Faston crimp connectors for easy installation. Can be used as a buffer-charger and paralleled for higher current.
