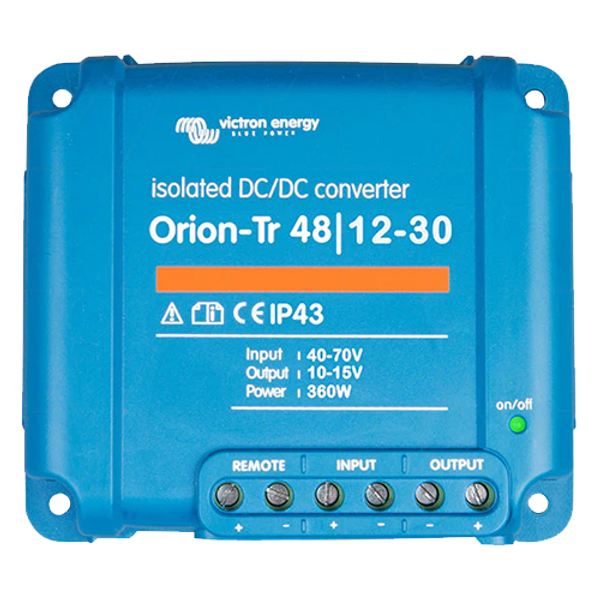

Victron Orion-Tr 48/12-30 Isolated DC-DC Converter

The Victron Orion-Tr 48/12-30 steps a 48V source down to a regulated 12V output while keeping the two circuits galvanically isolated — a common need when you're running a 48V main battery bank but still need a properly isolated 12V supply for accessories, a starter battery, or a separate 12V subsystem. Remote on-off support lets you trigger it from a low-power switch instead of wiring a high-current switch into the input.

Key Specs:

• Input Voltage Range: 40-70V
• Output Voltage: 12.2V nominal
• Max Continuous Output Current: 30A
• Max Output Power: 360W
• Short-circuit Output Current: 60A
• Isolation: Fully isolated design
• Enclosure Rating: IP43 with terminals oriented downward
• Connections: Screw terminals

Backed by Victron's 5-year limited warranty.
