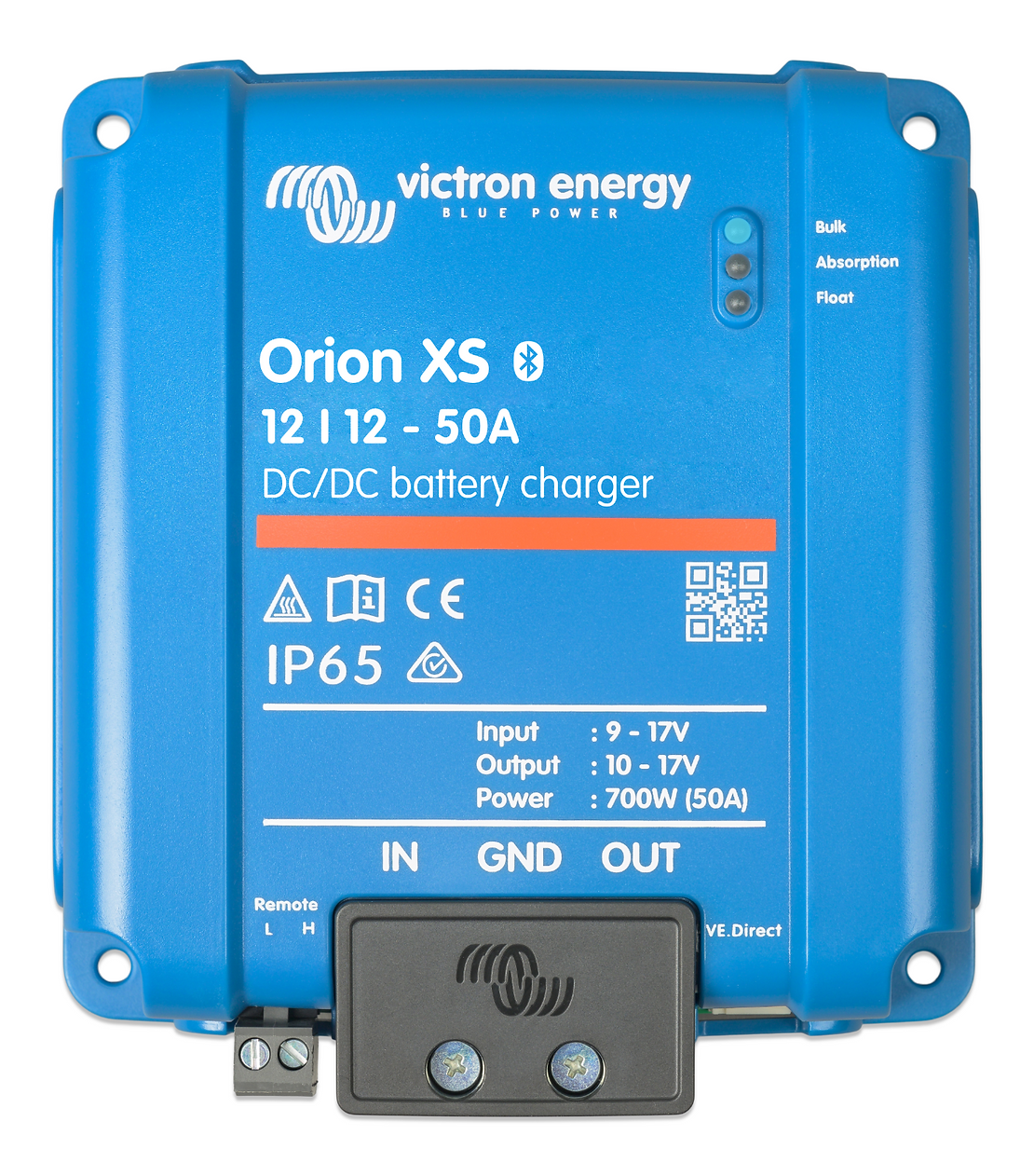

Victron Orion XS 12/12-50 Non-Isolated DC-DC Converter

The Orion XS is Victron's latest generation smart DC-DC charger, built to properly charge a 12V house battery bank from a vehicle alternator or other 12V source. Smart alternator compatibility with integrated engine-shutdown detection makes it a solid fit for modern vehicles with variable-voltage smart alternators, and the four-stage adaptive charging algorithm (Bulk, Absorption, Float, Storage) keeps lead-acid and lithium batteries properly maintained. Configure and monitor it over Bluetooth or VE.Direct with the VictronConnect app, or integrate it into a larger Victron system via DVCC with a GX device.

Key Specs:

• Input Voltage Range: 9-17V
• Output Voltage: Adjustable 10-17V (±0.25%)
• Output Current: 1-50A adjustable
• Continuous Output Power: 700W (up to 40°C)
• Max Efficiency: 98.5%
• Enclosure Rating: IP65, fanless natural convection cooling
• Dimensions: 137.3 x 123.1 x 40mm
• Weight: 0.33kg
• Max Cable Size: 4 AWG

A compact, efficient non-isolated charger for keeping a 12V house bank topped off from the alternator while driving.
