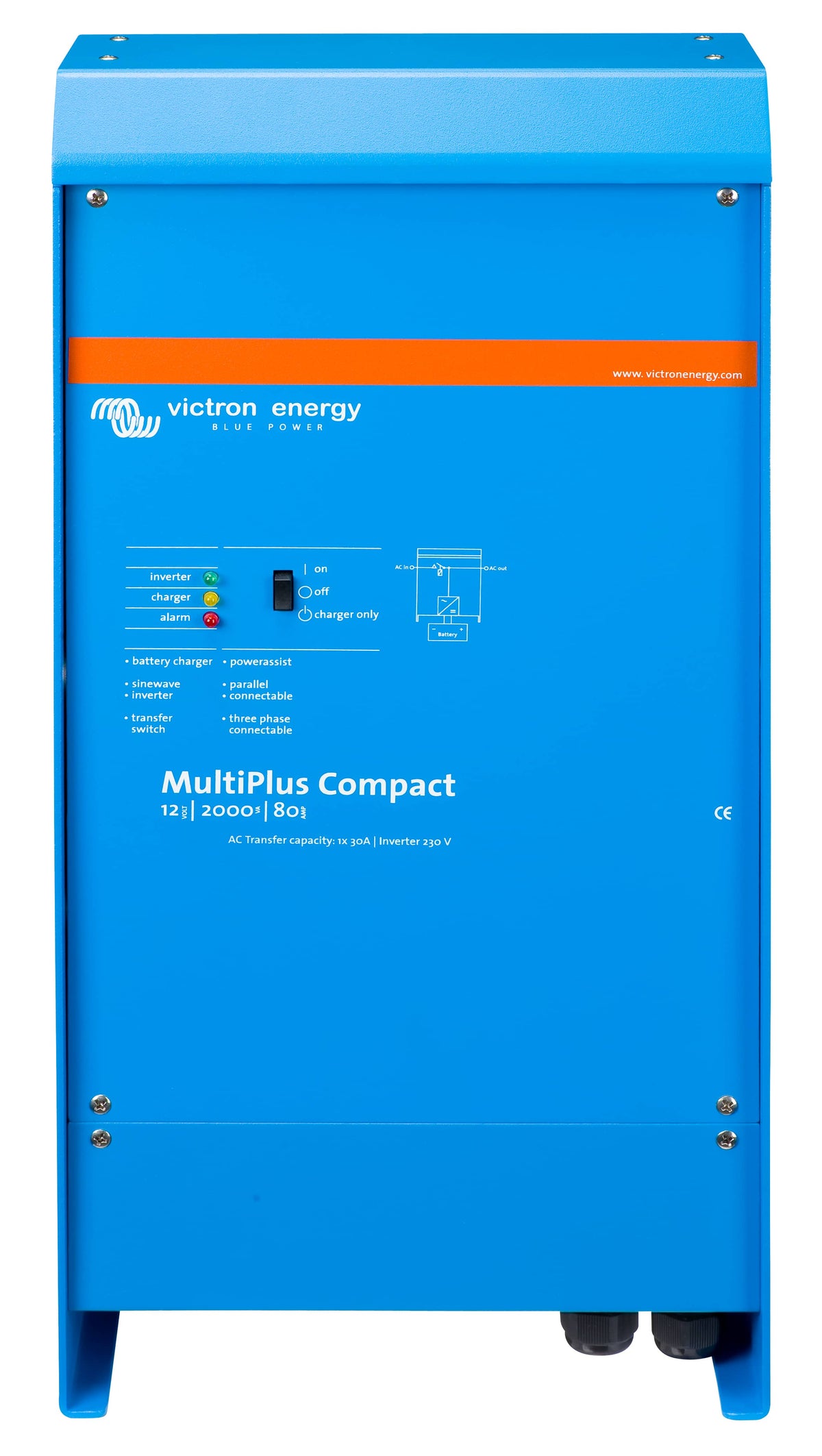

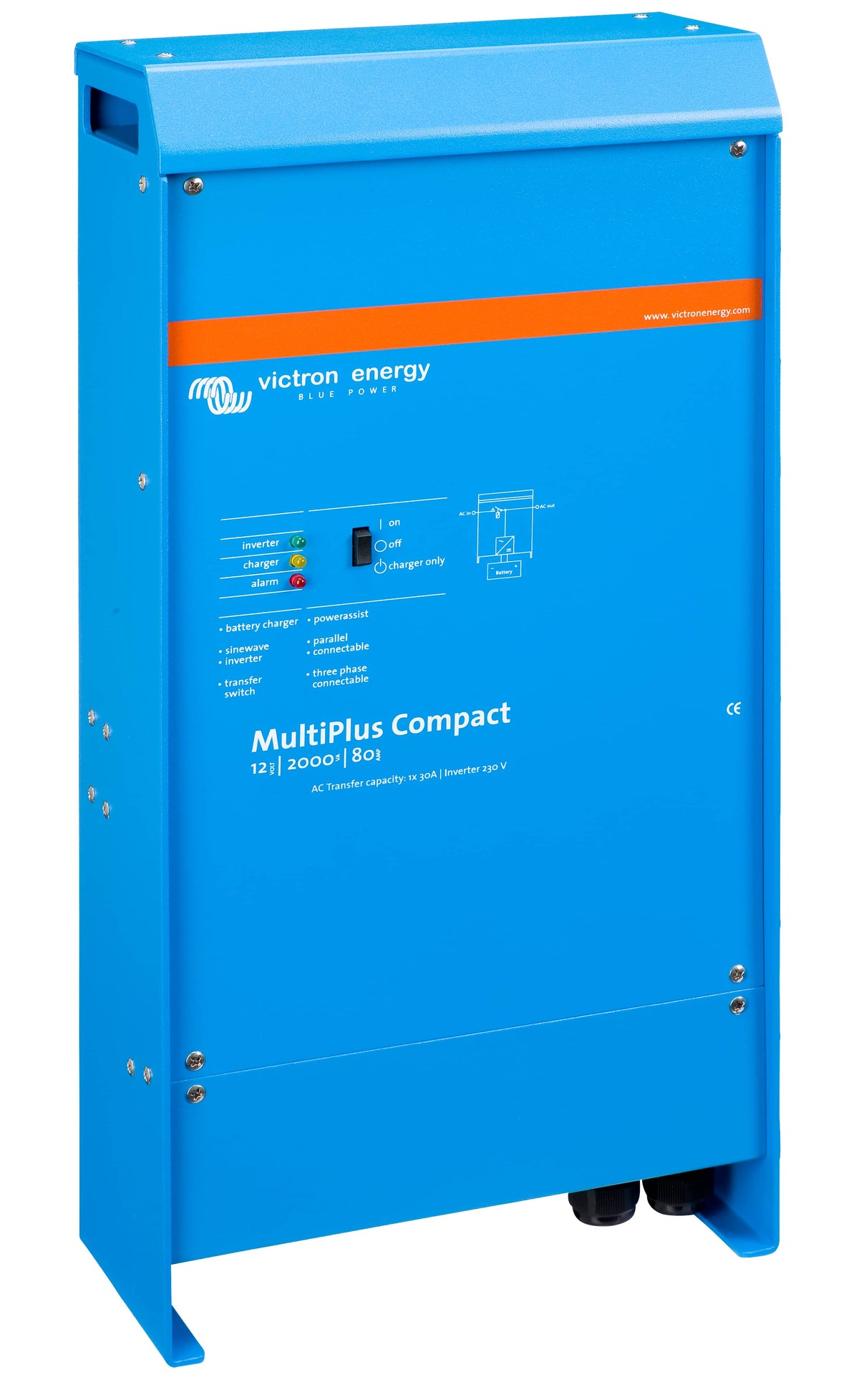

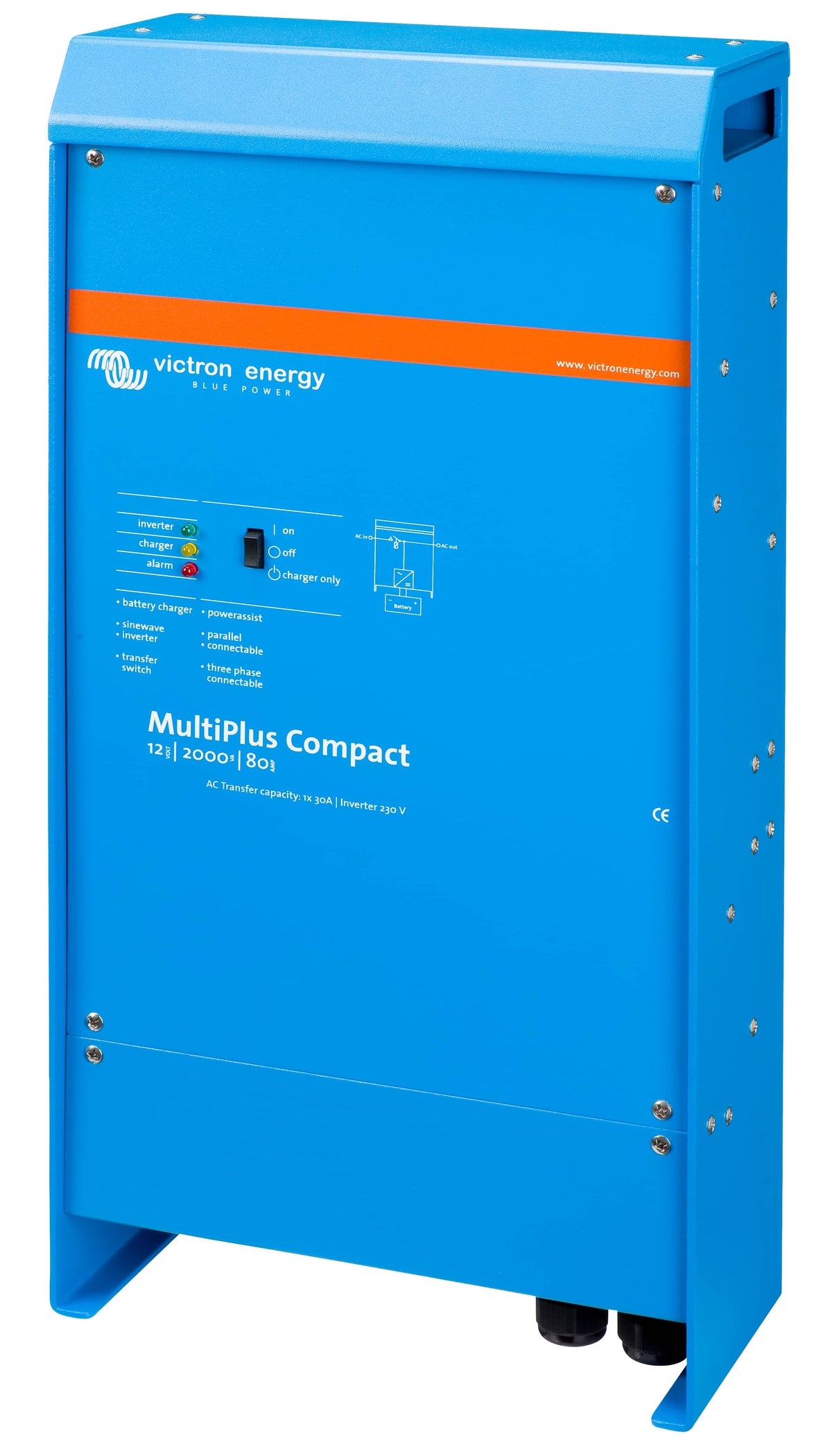

Victron MultiPlus Compact 12/2000/80-50 120V VE.Bus (UL 458)

The Victron MultiPlus Compact 12/2000/80-50 is a 2000VA true sine wave inverter, an 80A adaptive battery charger and a 50A automatic transfer switch in one slim, wall-mount enclosure. It's the go-to size for vans, trailers, smaller boats and cabins that want Victron's full VE.Bus feature set without the footprint of a 3000VA unit. PowerAssist tops up a weak shore or generator connection with battery power during high-load moments, and on a shore power or grid failure it transfers to inverter power in under 20 milliseconds — fast enough that computers and other electronics keep running without interruption. A separate 4A output keeps a starter battery topped up, and a programmable relay can be set for alarm, low-voltage or generator start. Add a GX device such as the Cerbo GX (or a VE.Bus Smart Dongle for Bluetooth) for monitoring and control from the VictronConnect and VRM apps.

Key Specs:

• DC Input: 9.5–17V (12V system)
• Continuous Output: 2000VA / 1600W at 25°C (1450W at 40°C)
• Peak Power: 4000W
• AC Output: 120V ± 2%, 60Hz ± 0.1%
• Max Charge Current: 80A house battery + 4A starter battery
• AC Input / Transfer Switch: 50A (charger input 95–140VAC)
• Max Efficiency: 92%
• Zero-Load Power: 9W (3W in Search mode)
• Recommended Battery Bank: 350–1000Ah; recommended DC fuse 300A
• Dimensions: 20.5 x 10.0 x 5.0 in (520 x 255 x 125 mm)
• Weight: 25 lb (13 kg)
• Protection: IP20, indoor/dry location; operating temp -40 to +40°C (fan assisted)
• Certification: UL 458
• Part Number: CMP122200102

Compact or standard MultiPlus? Both are 12V, 2000VA, 80A charger, 50A transfer. The Compact is tall and thin for mounting flat on a wall or cabinet side and has a higher 4000W peak rating. The standard MultiPlus 12/2000/80-50 120V is a shorter, deeper box (14.3 x 10.2 x 8.6 in) — pick whichever fits your space. Need more power? See the MultiPlus-II 12/3000/120-50.
